FLEX-COREĀ® maintains a large in-stock inventory of Current Transducers including AC, DC, RMS & Variable Frequency Current Transducers for most common applications.
Below is a list of all current transducer available through Flex-Core, however, not all models are in-stock.Ā To check pricing and availability for a specific current transducer model, give us a call at (614) 889-6152 or use our quote requestĀ form.Ā You can also use our live chat tool to speak directly with a sales representative.
If you have a specific application and need a current transducer with a custom ratio, please contact support.
AC, DIN Mount, High Accuracy, True RMS
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
16 | MCTR | 0-0.1A thru 0-5A or 0-0.333V | 4-20mAdc | Loop Powered 15-35Vdc | Load Trending, Motor Control, SCADA, Data Logging, Inverters, Wind Turbines |
AC, DIN Mount, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|

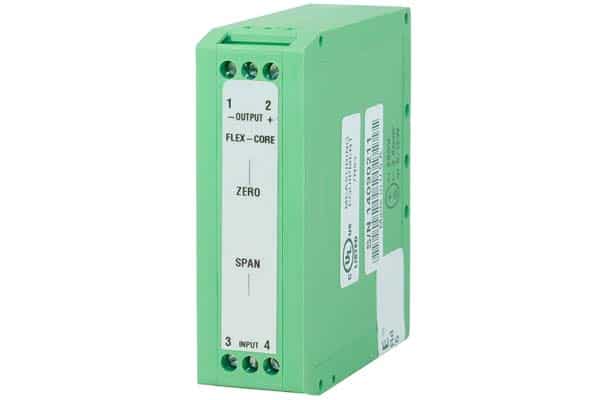

17 | MCT5 | 0-1A or 0-5A | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | Loop Powered 15-40Vdc, 85-135Vac, self-powered | Load Trending, Motor Control, SCADA, Data Logging |
AC, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
18 | 3ACT | 0-1A or 0-20A | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | Loop Powered 15-24Vdc, 115 or 230Vac +/-15%, self-powered | Load Trending, Motor Control, SCADA, Data Logging | |
19 | ACT | 0-1A or 0-20A | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | Loop Powered 15-24Vdc, 115 or 230Vac +/-15%, self-powered | Load Trending, Motor Control, SCADA, Data Logging |
AC, High Accuracy, True RMS
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
20 | 3CTR | 0-1A or 0-20A | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 85-265Vac/110-370Vdc | Load Trending, Motor Control, SCADA, Data Logging, Inverters, Wind Turbines | |
21 | ACTR | 0-1A or 0-20A | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 115 or 230Vac +/-15% | Load Trending, Motor Control, SCADA, Data Logging, Inverters, Wind Turbines |
AC, True RMS, Low Cost
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
22 | MGT-0420-001 | 0-0.333V | 4-20mAdc | Loop Powered 8-35Vdc | Load Trending, Motor Control, SCADA, Data Logging, Inverters, Wind Turbines |
DC, Low Cost
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
23 | DT | 0-5A thru 0-200A | 4-20mAdc, 0-10Vdc, 0-5Vdc or ±10Vdc (Bidirectional models only) | +24Vac/dc | Load Trending, Motor Control, SCADA, Data Logging, Solar |
DC, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
24 | CT7 | 0-0.1A thru 0-20A | ±1mA, ±10V, ±5V or 4-20Adc | 85-265Vac/110-370Vdc (12V,15V, 24V, 37V,48Vdc options) | Load Trending, Motor Control, SCADA, Data Logging, Solar |
AC/DC, High Accuracy, True RMS, Variable Frequency
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
25 | CTL/CTA | 0-35A thru 0-40000A | 4-20mAdc, +/-10Vdc, +/-5Vdc, 4-12-20mA | 115 or 230Vac +/-15% (12V, 24V, 48Vdc options) | Load Trending, Motor Control, SCADA, Data Logging, Solar, VFDs, Wind Turbines | |
26 | CT8 | 0-0.1A thru 0-20A | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 85-265Vac/110-370Vdc (12V,15V, 24V, 37V,48Vdc options) | Load Trending, Motor Control, SCADA, Data Logging, Inverters, VFDs, Wind Turbines |
DC, Integral Signal Condiitoner, Low Cost
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
27 | CT-4820 | 0-400A | 4-20mAdc | 24Vdc or ac ±10% | Load Trending, Motor Control, SCADA, Data Logging, Solar | |
28 | CT-4812 | 0-100A thru 400A | 4-20mAdc | 24Vdc or ac ±10% | Load Trending, Motor Control, SCADA, Data Logging, Solar | |
29 | CT-4809 | 0-400A | 4-20mAdc | Loop Powered 20-30Vdc | Load Trending, Motor Control, SCADA, Data Logging, Solar |
DC, Split-Core, Integral Signal Condiitoner
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
30 | CTG | 0-100A thru 0-5000A | ±10Vdc or ±5dc | +/-15Vdc | Load Trending, Motor Control, SCADA, Data Logging, Solar |
DC, Integral Signal Condiitoner, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
31 | CTH | 0-25A thru 0-1500A | 4-20mAdc, +/-10Vdc, +/-5Vdc, 4-12-20mA | 24Vdc or ac ± 10% | Load Trending, Motor Control, SCADA, Data Logging, Solar |
AC, Watt, Watthour, Power Factor, VA, Current, Voltage, Multiple Function
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
32 | PTB | 0-150V, 0-300V, 0-600V/0-5A | 0-1mAdc, 4-20mAdc or 0-10Vdc | 115 or 230Vac +/-15% | Load Trending, Motor Control, SCADA, Data Logging |
AC, DIN Mount, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
33 | MVT | 0-150V thru 0-600V | 0-1mAdc (5V or 10V), or 4-20mAdc | Loop Powered 15-40Vdc, 85-135Vac, self-powered | Service Monitoring, Voltage Control, SCADA, Data Logging |
AC, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
34 | 3AVT | 0-90V thru 0-600V | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | Loop Powered 15-24Vdc, 115 or 230Vac +/-15%, self-powered | Service Monitoring, Voltage Control, SCADA, Data Logging | |
35 | AVT | 0-90V thru 0-600V | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | Loop Powered 15-24Vdc, 115 or 230Vac +/-15%, self-powered | Service Monitoring, Voltage Control, SCADA, Data Logging |
AC, True RMS, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
36 | 3VTR | 0-150V thru 0-600V | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 85-265Vac/110-370Vdc | Service Monitoring, Voltage Control, SCADA, Data Logging, Inverters, Wind Turbines | |
37 | AVTR | 0-150V thru 0-600V | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 115 or 230Vac +/-15% | Service Monitoring, Voltage Control, SCADA, Data Logging, Inverters, Wind Turbines |
AC, DIN Mount, True RMS, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
36 | MVTR | 0-150V thru 0-600V | 4-20mAdc | Looped Powered 15-35Vdc | Service Monitoring, Voltage Control, SCADA, Data Logging, Inverters, Wind Turbines |
DC, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
36 | VT7 | 50mV thru 1000V | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 85-265Vac/110-370Vdc (12V,15V, 24V, 37V,48Vdc options) | Service Monitoring, Voltage Control, SCADA, Data Logging, Solar |
AC/DC, True RMS, Variable Frequency
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
36 | VT8 | 50mV thru 1000V | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 85-265Vac/110-370Vdc (12V,15V, 24V, 37V,48Vdc options) | Service Monitoring, Voltage Control, SCADA, Data Logging, Inverters, VFDs, Wind Turbines |
DC, Low Cost
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
36 | VTU | 50mV thru 1000V | 0-1mAdc, 4-20mAdc, 0-5Vdc, 0-10Vdc | 115 or 230Vac +/-15% | Service Monitoring, Voltage Control, SCADA, Data Logging, Solar |
DC, High Voltage
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
36 | VTH | 50mV thru 4000V | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 115Vac | Service Monitoring, Voltage Control, SCADA, Data Logging, Solar |
AC, Watt, Watthour, Power Factor, VA, Current, Voltage, Multiple Function
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
32 | PTB | 0-150V, 0-300V, 0-600V/0-5A | 0-1mAdc, 4-20mAdc or 0-10Vdc | 115 or 230Vac +/-15% | Load Trending, Motor Control, SCADA, Data Logging |
DC, Watt, Hall Effect Sensor, High Current
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
36 | PC8 | 0-25V thru 0-600V/0-5A | ±1mAdc, ±10Vdc, ±5Vdc, 4-20mAdc or 4-12-20mAdc | 115 or 230Vac +/-15% | Power Monitoring, SCADA, Data Logging, Solar |
AC, Watt, Single & Three Phase, Non Sinusoids
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
36 | PC5 | 0-150V thru 0-600V/0-1A thru 0-25A | ±1mAdc, 4-20mAdc, 4-12-20mAdc, ±10Vdc or ±5Vdc | Loop Powered 15-40Vdc, 115 or 230Vac +/-10%, self-powered |
Power Monitoring, SCADA, Data Logging, Inverters, Wind Turbines | |
37 | PC4 | 0-150V thru 0-600V/0-1A thru 0-25A | ±1mAdc, 4-20mAdc, 4-12-20mAdc, ±10Vdc or ±5Vdc | Loop Powered 15-40Vdc, 115 or 230Vac +/-10%, self-powered |
Power Monitoring, SCADA, Data Logging, Inverters, Wind Turbines |
AC, Watts, Power Factor, Volt-Ampere, Multiple Function
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
30 | PC20 | 0-150V thru 0-600V or 0-1A thru 0-20A | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 115 or 230Vac +/-10% | Power Monitoring, SCADA, Data Logging, Inverters, Wind Turbines |
AC, Watt, Single & Three Phase, Variable Frequency, Hall Effect Sensor
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
31 | P | 0-150V thru 0-600V/0-100A thru 0-2000A | ±1mAdc, ±10Vdc, ±5Vdc, 4-20mAdc ±20mAdc or 4-12-20mAdc | 115 or 230Vac +/-15% | Power Monitoring, SCADA, Data Logging, Inverters, VFDs, Wind Turbines |
AC, Watthour, Power Factor, VA, Current, Voltage, Multiple Function
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
34 | GWV5 | 0-150V thru 0-600V/0-5A | ±1mAdc, ±10Vdc, ±5Vdc, 4-20mAdc or 4-12-20mAdc | 115 or 230Vac +/-10%, self-powered | Power Monitoring, SCADA, Data Logging |
AC, Single & Three Phase, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
32 | GW5 | 0-150V thru 0-600V/0-5A | ±1mA, ±10V, ±5V, 4-20mA or 4-12-20mA | 115 or 230Vac +/-10%, self-powered | Power Monitoring, SCADA, Data Logging | |
33 | AGW | 0-150V thru 0-600V/0-1A thru 0-20A | +/-1mA, +/-10V, 4-20mA | 85-135Vac | Power Monitoring, SCADA, Data Logging |
AC, Watt / VAR, Single & Three Phase, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
32 | PTB | 0-150V, 0-300V, 0-600V/0-5A | 0-1mAdc, 4-20mAdc or 0-10Vdc | 115 or 230Vac +/-15% | Load Trending, Motor Control, SCADA, Data Logging |
AC, Watt / Watthour, Single & Three Phase, Multiple Function, Non Sinusoids
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
35 | W | 0-150V thru 0-600V/0-1A thru 0-25A | ±1mAdc, 4-20mAdc, 4-12-20mAdc, ±10Vdc or ±5Vdc (kWh Pulse) | 115 or 230Vac +/-10%, self-powered | Power Monitoring, SCADA, Data Logging, Inverters, Wind Turbines | |
36 | W4 | 0-150V thru 0-600V/0-1A thru 0-25A | ±1mAdc, 4-20mAdc, 4-12-20mAdc, ±10Vdc or ±5Vdc (kWh Pulse) | 115 or 230Vac +/-10%, self-powered | Power Monitoring, SCADA, Data Logging, Inverters, Wind Turbines |
AC, Watt / Watthour, Single & Three Phase, Multiple Function, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
37 | AGH | 0-150V thru 0-600V/0-1A thru 0-20A | ±1mAdc, ±10Vdc, or 4-20mAdc (kWh Pulse) | 115 or 230Vac +/-15%, self-powered | Power Monitoring, SCADA, Data Logging | |
38 | GH | 0-150V thru 0-600V/0-5A | ±1mA, ±10V, ±5V, 4-20mA or 4-12-20mA (kWh Pulse) | 90-135Vac | Power Monitoring, SCADA, Data Logging |
AC, Watt / VAR, Single & Three Phase, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
34 | GWV5 | 0-150V thru 0-600V/0-5A | ±1mAdc, ±10Vdc, ±5Vdc, 4-20mAdc or 4-12-20mAdc | 115 or 230Vac +/-10%, self-powered | Power Monitoring, SCADA, Data Logging |
AC, VAR/VARhour, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
35 | VGH | 0-150V thru 0-600V/0-1A thru 0-20A | ±1mAdc, ±10Vdc, ±5Vdc, 4-20mAdc or 4-12-20mAdc (kVARh Pulse) | 115 or 230Vac +/-15%, self-powered | Reactive Power Monitoring, SCADA, Data Logging, Capacitor Banks |
AC, Narrow and Wide Band Frequency
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
36 | AFT | 3-575V | 0-1mAdc, 0-20mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | Loop Powered 15-24Vdc, 115 or 230Vac +/-15% |
Frequency Monitoring, SCADA, Data Logging, VFDs, Wind Turbines |
AC, Power Factor, Volt-Ampere, Multiple Function
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
30 | PC20 | 0-150V thru 0-600V or 0-1A thru 0-20A | 0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc | 115 or 230Vac +/-10% | Power Monitoring, SCADA, Data Logging, Inverters, Wind Turbines |
AC, Watt, Watthour, Power Factor, VA, Current, Voltage, Multiple Function
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
32 | PTB | 0-150V, 0-300V, 0-600V/0-5A | 0-1mAdc, 4-20mAdc or 0-10Vdc | 115 or 230Vac +/-15% | Load Trending, Motor Control, SCADA, Data Logging |
AC, Phase Angle
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
34 | PF5 | 0-95V thru 0-550V/0.02 thru 0-20A | ±1mAdc, ±10Vdc, 4-20mAdc or 4-12-20mAdc | 115 or 230Vac +/-10% | Power Factor Monitoring, SCADA, Data Logging, Capacitor Banks |
AC, Watt, Watthour, Power Factor, VA, Current, Voltage, Multiple Function
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
32 | PTB | 0-150V, 0-300V, 0-600V/0-5A | 0-1mAdc, 4-20mAdc or 0-10Vdc | 115 or 230Vac +/-15% | Load Trending, Motor Control, SCADA, Data Logging |
AC, Watt, Multiple Function, Non Sinusoids
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
35 | W | 0-150V thru 0-600V/0-1A thru 0-25A | ±1mAdc, 4-20mAdc, 4-12-20mAdc, ±10Vdc or ±5Vdc (kWh Pulse) | 115 or 230Vac +/-10%, self-powered | Power Monitoring, SCADA, Data Logging, Inverters, Wind Turbines | |
36 | W4 | 0-150V thru 0-600V/0-1A thru 0-25A | ±1mAdc, 4-20mAdc, 4-12-20mAdc, ±10Vdc or ±5Vdc (kWh Pulse) | 115 or 230Vac +/-10%, self-powered | Power Monitoring, SCADA, Data Logging, Inverters, Wind Turbines |
AC, Watt / Watthour, Single & Three Phase, Multiple Function, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
37 | AGH | 0-150V thru 0-600V/0-1A thru 0-20A | ±1mAdc, ±10Vdc, or 4-20mAdc (kWh Pulse) | 115 or 230Vac +/-15%, self-powered | Power Monitoring, SCADA, Data Logging | |
38 | GH | 0-150V thru 0-600V/0-5A | ±1mA, ±10V, ±5V, 4-20mA or 4-12-20mA (kWh Pulse) | 90-135Vac | Power Monitoring, SCADA, Data Logging |
AC, VAR/VARhour, High Accuracy
wdt_ID | Model # | Input Range | Analog Output | Insurment Power Type | Typical Application | Image |
---|---|---|---|---|---|---|
35 | VGH | 0-1A thru 0-20A | ±1mAdc, ±10Vdc, ±5Vdc, 4-20mAdc or 4-12-20mAdc (kVARh Pulse) | 115 or 230Vac +/-15%, self-powered | Power & Energy Monitoring, SCADA, Data Logging | |
36 | SWH | 0-115V thru 0-277V/0-100A thru 0-400A | kWh Pulse | Self-Powered | Power & Energy Monitoring, SCADA, Data Logging |
