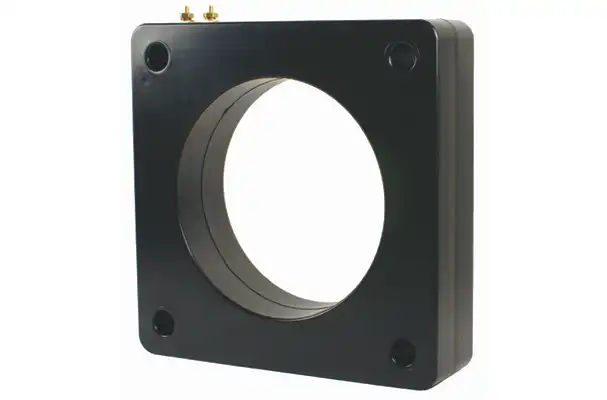

Flex-Core's 100 Series 600V Solid-Core Current Transformers

Model# 100 600V

Download Datasheet

Download Product Catalog

Terminals: Brass Studs No. 8-32 UNC with one flat washer, lock washer and regular nut.
Mounting Bracket: P/N 0221B00185
Manufactured to meet the requirements of ANSI/IEEE C57.13
UL Recognized
Window I.D. – 4.0″
Relaying and Metering Applications

Insulation Class0.6kV, 10kV BIL Full Wave

Relay ClassC10 to C50

WeightApproximately 10 Lbs

Amps0-200 thru 0-3000A

Frequency50-400Hz

Standard5A

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

Catalog Number	Input Amps	Output Amps	Relay Class	B0.1	B0.2	B0.5	B0.9	B1.8	Secondary Winding Resistance (Ω@75°C)	@30°C	@55°C
100-201	200A	5A	C10	0.6	0.6	1.2	2.4	-	0.057	2.0	2.0
100-301	300A	5A	C10	0.3	0.3	0.6	1.2	-	0.091	2.0	2.0
100-401	400A	5A	C20	0.3	0.3	0.6	0.6	1.2	0.133	2.0	2.0
100-501	500A	5A	C20	0.3	0.3	0.6	0.6	1.2	0.166	2.0	1.5
100-601	600A	5A	C20	0.3	0.3	0.3	0.6	0.6	0.199	2.0	1.5
100-801	800A	5A	C20	0.3	0.3	0.3	0.3	0.6	0.266	1.5	1.33
100-102	1000A	5A	C50	0.3	0.3	0.3	0.3	0.3	0.332	1.5	1.0
100-122	1200A	5A	C20	0.3	0.3	0.3	0.3	0.3	0.374	1.5	1.0
100-152	1500A	5A	C20	0.3	0.3	0.3	0.3	0.3	0.468	1.33	1.0
100-162	1600A	5A	C50	0.3	0.3	0.3	0.3	0.3	0.499	1.33	1.0
100-202	2000A	5A	C50	0.3	0.3	0.3	0.3	0.3	0.624	1.0	0.8
100-252	2500A	5A	C50	0.3	0.3	0.3	0.3	0.3	0.735	1.0	0.8
100-302	3000A	5A	C50	0.3	0.3	0.3	0.3	0.3	0.882	1.0	0.8
