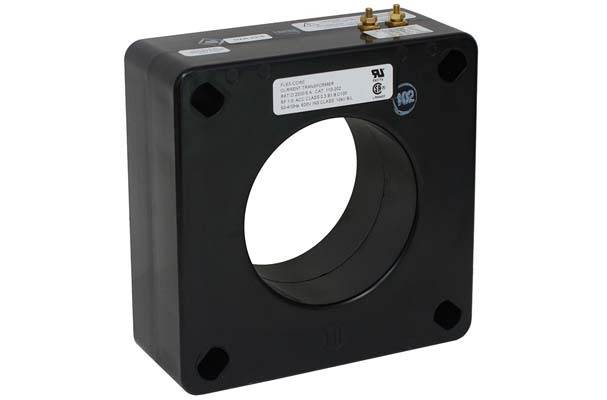

110 Relay/Meter Class Current Transformers

Model# 110 600V

Download Datasheet

Download Product Catalog

Terminals: Brass Studs No. 8-32 UNC with one flat washer, lock washer and regular nut.
Mounting Bracket: P/N 0221B00186
Manufactured to meet the requirements of ANSI/IEEE C57.13
UL Recognized
Window I.D. – 4.0″
Relaying and Metering Applications

Insulation Class0.6kV, 10kV BIL Full Wave

Revenue Grade only available in:300:5A and above

Relay ClassC10 to C100

WeightApproximately 13 Lbs

Amps0-200 thru 0-3000A

Frequency50-400Hz

Standard5A

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

Catalog Number	Input Amps	Output Amps	Relay Class	B0.1	B0.2	B0.5	B0.9	B1.8	Secondary Winding Resistance (Ω@75°C)	@30°C	@55°C
110-201	200A	5A	C10	0.6	1.2	1.2	2.4	-	0.085	2.0	2.0
110-301	300A	5A	C20	0.3	0.6	0.6	1.2	2.4	0.128	2.0	2.0
110-401	400A	5A	C20	0.3	0.3	0.3	0.6	1.2	0.152	2.0	2.0
110-501	500A	5A	C20	0.3	0.3	0.3	0.6	0.6	0.214	2.0	1.5
110-601	600A	5A	C50	0.3	0.3	0.3	0.3	0.6	0.256	2.0	1.5
110-801	800A	5A	C50	0.3	0.3	0.3	0.3	0.3	0.342	1.5	1.33
110-102	1000A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.427	1.5	1.0
110-122	1200A	5A	C50	0.3	0.3	0.3	0.3	0.3	0.489	1.5	1.0
110-152	1500A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.611	1.33	1.0
110-162	1600A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.652	1.0	1.0
110-202	2000A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.815	1.0	0.8
110-252	2500A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.974	1.0	0.6
110-262	3000A	5A	C100	0.3	0.3	0.3	0.3	0.3	1.168	1.0	0.6
