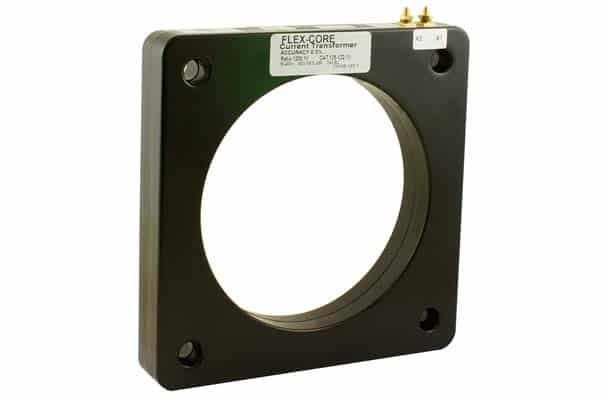

125-1V Solid-Core Metering Class Current Transformer

Model# 125-1V 600V

Download Datasheet

Download Product Catalog

Terminals: Brass Studs No. 8-32 with one flat washer, lock washer, and regular nut
Mounting Brackets: P/N 0221B00231
For use with 0-1Vac input power meters.

Insulation Class0.6kV, 10kV BIL Full Wave

WeightApproximately 3 Lbs

500:1 thru 2000:10.3%

Amps0-500 thru 0-2000A

Frequency50-400Hz

Standard1V

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

1 Volt Secondary Models

Catalog Number	Input Amps	Output Volts	Accuracy	Continous Thermal Rating Factor @30°C	Continous Thermal Rating Factor @55°C	Weight
125-501-1V	500A	1V	0.30%	1.0	0.8	3 Lbs
125-601-1V	600A	1V	0.30%	1.0	0.8	3 Lbs
125-801-1V	800A	1V	0.30%	1.0	0.8	3 Lbs
125-102-1V	1000A	1V	0.30%	1.0	0.8	3 Lbs
125-122-1V	1200A	1V	0.30%	1.0	0.8	3 Lbs
125-152-1V	1500A	1V	0.30%	1.0	0.8	3 Lbs
125-202-1V	2000A	1V	0.30%	1.0	0.8	3 Lbs
