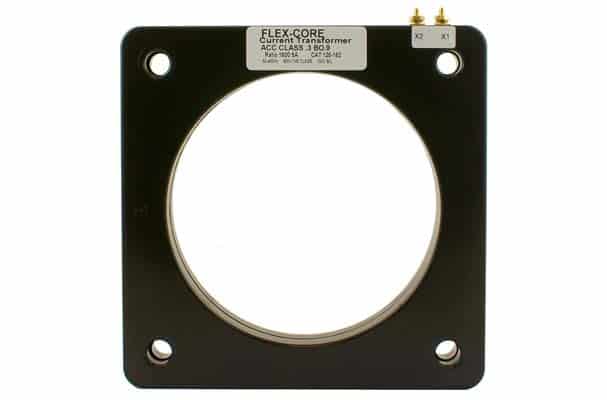

Model# 125
600V
Metering Class Current Transformer
- Mounting Brackets – P/N 0221B00231
- Bus Bar Mounting Kit – P/N 0221A26076
- Terminals are Brass Studs No. 8-32 UNC
- Manufactured to meet the requirements of ANSI/IEEE C57.13
- For use with AGW series and AGH series Watt and Watt/Watt Hour Transducers.
- Ideal for use with Ammeters, Set Point Relays, Watt, Var, Current Transducers and Watt Hour Meters.
Overview
Frequency50-400Hz
Weight3 Lbs
Input
Amps0-1000 thru 0-4000A
Frequency50-400Hz
Output
Standard5A
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Amps | B0.1 | B0.2 | B0.5 | B0.9 | B1.8 | Secondary Winding Resistance(Ω@75°C) | @30°C | @55°C | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 125-102 | 1000A | 5A | 0.3 | 0.3 | 0.3 | 0.6 | 1.2 | 0.187 | 1.5 | 1.33 | 3 Lbs |
| 125-122 | 1200A | 5A | 0.3 | 0.3 | 0.3 | 0.6 | 1.2 | 0.223 | 1.5 | 1.33 | 3 Lbs |
| 125-152 | 1500A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.285 | 1.5 | 1.33 | 3 Lbs |
| 125-162 | 1600A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.304 | 1.5 | 1.33 | 3 Lbs |
| 125-202 | 2000A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.280 | 1.5 | 1.0 | 3 Lbs |
| 125-252 | 2500A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.351 | 1.33 | 1.0 | 3 Lbs |
| 125-302 | 3000A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.421 | 1.33 | 1.0 | 3 Lbs |
| 125-352 | 3500A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.491 | 1.33 | 1.0 | 3 Lbs |
| 125-402 | 4000A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.696 | 1.0 | 0.8 | 3 Lbs |
