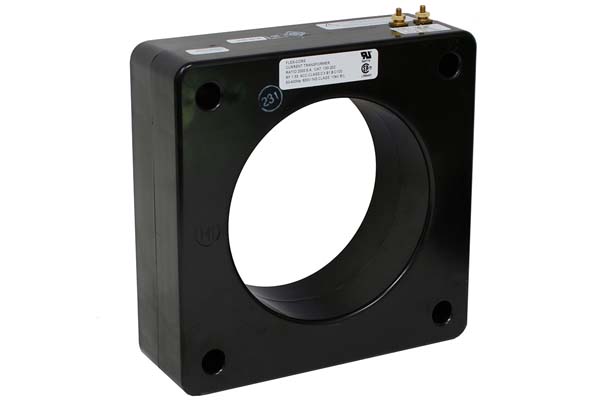

130 600V Relay/Meter Class Current Transformers

Model# 130 600V

Download Datasheet

Download Product Catalog

Terminals: Brass Studs No. 8-32 UNC with one flat washer, lock washer and regular nut.
Mounting Bracket: P/N 0221B00186
Optional Mounting Bracket: P/N 0221B00775
Approved for Revenue Metering by Industry Canada AE-0642
Manufactured to meet the requirements of ANSI/IEEE C57.13
Over or Under Current Relays
Ability to drive longer wire runs
Zero-Sequence Ground Fault Relays
Relaying and Metering Applications
High Relay Class Models
UL Recognized
Window I.D. – 7.31″

Insulation Class0.6kV, 10kV BIL Full Wave

Revenue Grade only available in:300:5A and above

WeightApproximately 18 lbs

Amps0-200 thru 0-4000A

Frequency50-400Hz

Standard5A

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

Catalog Number	Input Amps	Output Amps	Relay Class	B0.1	B0.2	B0.5	B0.9	B1.8	Secondary Winding Resistance (Ω@75°C)	@30°C	@55°C
130-201	200A	5A	C10	0.6	0.6	2.4	2.4	4.8	0.064	2.0	2.0
130-301	300A	5A	C20	0.3	0.3	1.2	1.2	2.4	0.105	2.0	2.0
130-401	400A	5A	C20	0.3	0.3	0.6	1.2	1.2	0.140	2.0	2.0
130-501	500A	5A	C20	0.3	0.3	0.3	0.6	1.2	0.175	2.0	2.0
130-601	600A	5A	C20	0.3	0.3	0.3	0.6	1.2	0.210	2.0	1.5
130-801	800A	5A	C50	0.3	0.3	0.3	0.3	0.6	0.324	2.0	1.5
130-102	1000A	5A	C50	0.3	0.3	0.3	0.3	0.3	0.404	1.5	1.33
130-122	1200A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.485	1.5	1.0
130-152	1500A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.607	1.5	1.0
130-162	1600A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.647	1.33	1.0
130-202	2000A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.647	1.33	1.0
130-252	2500A	5A	C100	0.3	0.3	0.3	0.3	0.3	0.647	1.0	0.8
130-302	3000A	5A	C100	0.3	0.3	0.3	0.3	0.3	1.175	1.0	0.8
130-402	4000A	5A	C100	0.3	0.3	0.3	0.3	0.3	1.484	1.0	0.6
