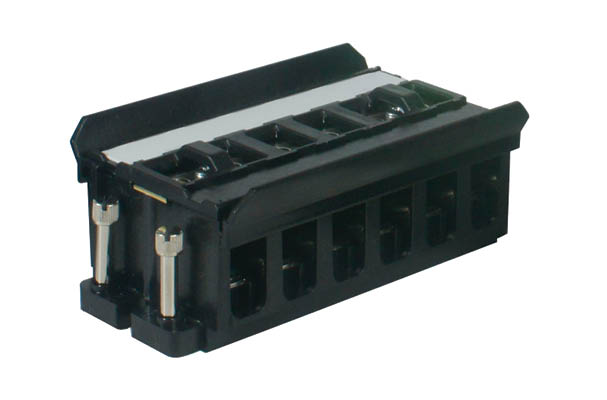

Model# 17SC 600V

Shorting Terminal Block

  • Short circuiting versions for meter servicing, CT tap changing, etc.
  • Rugged non-chipping heavy duty construction
  • Black plastic cover
  • Can make shorting connection without removing the cover
  • 4, 6 and 8 pole configurations Shorting type with covers, shorting screws and screw “Parking Stations”
  • Material: Thermoplastic body
  • Terminal Screws: #10-32 nickel plated brass
  • Terminals: Brass, allows lugs up to 1/2″ in width
  • Surface Mounting: Flat base for one piece terminal block replacement
  • Optional DIN Rail Adapter: For mounting on rail EN50035 (DIN1) – Order part number DIN-R-1-KIT

Overview

Rating600Vac, 75A
Wire Range18-10 AWG

Model# 17C-Shorting-Terminal-Block

  • RoHS

  • CE

  • CSA

    LR19766

  • RU

    E62806
