Model# 190XSUM 600V

Summing Current Transformer

The Model 190XSUM is a UL recognized summing transformer for use when two, three, four, or five current transformers need to be totalized.

Since these units are used in the secondary of another current transformer, they do not have a voltage rating. It is given a 2500Volt – 60Hz Hi Pot. test. It is designed to be used on circuits not to exceed 600 volts-to-ground or between windings.

  • Secondary Terminals: Brass Studs No. 8-32
  • Optional Mounting Bracket: P/N 0221B00777

Overview

Insulation Class0.6kV, 10kV BIL Full Wave
Continuous Thermal Factor1.33 at 30°C 1.0 at 55°C
WeightApproximately 4 Lbs

Input

Amps0-5 plus 0-5A
Frequency50-400Hz

Output

Standard5A

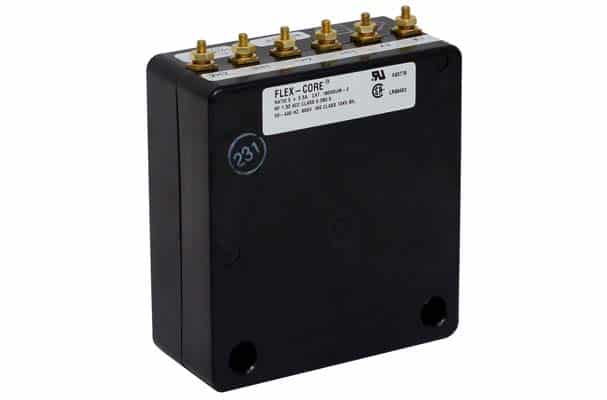

190SXUM-Solid-Core-Current-Transformer

  • CSA

    LR89403

  • RU

    E93779
