Model# 191I 600V

Metering Class Current Transformer

Download Datasheet

Download Product Catalog
  • Terminals: Brass Studs No. 8-32 UNC with one flat washer, lock washer and regular nut
  • Mounting Brackets: P/N 0221B00777
  • Manufactured to meet the requirements of IEC
  • For use with Watt, Var, Watt/Var, Watt/Watthour Transducers, Meters and Relays
  • Meets ANSI specifications for sub-metering applications
  • UL Recognized

Overview

Insulation Class0.6kV, 10kV BIL Full Wave
Relay Class C10

Accuracy

200:5 thru 400:50.2%

Input

Amps0-200 thru 0-400A
Frequency50-400Hz

Output

Standard5A
VA Rating 1.0VA to 5.0VA

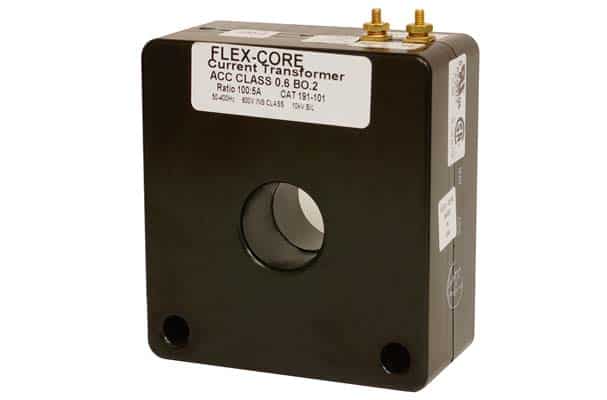

191I-Solid-Core-Current-Transformer

  • RoHS

  • CSA

    245941

  • C RU US

    E238872

  • Made in the USA
