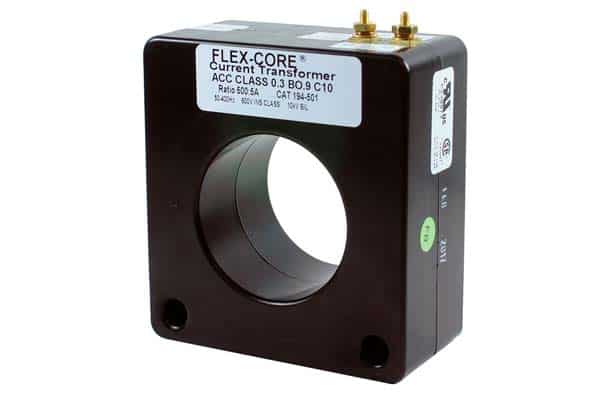

Model# 194I
600V
Metering Class Current Transformer
- Terminals:Â Brass Studs No. 8-32 UNC with one flat washer, lock washer and regular nut
- Mounting Brackets: P/N 0221B00777
- Manufactured to meet the requirements of IEC
- For use with Watt, Var, Watt/Var, Watt/Watthour Transducers, Meters and Relays
- Meets ANSI specifications for sub-metering applications
- UL Recognized
Overview
Insulation Class0.6kV, 10kV BIL Full Wave
Relay Class C10
Accuracy
300:5 thru 800:50.2%
Input
Amps0-300 thru 0-800A
Frequency50-400Hz
Output
Standard5A
VA Rating 1.0VA to 10.0VA
