Model# 19SHT-1V 600V

Metering Class Current Transformer

  • Terminals: Brass Studs No. 8-32 with one flat washer, lock washer, and regular nut
  • Mounting Brackets: P/N 0221B00183
  • For use with 0-1Vac input power meters.

Overview

Insulation Class0.6kV, 10kV BIL Full Wave
WeightApproximately 3 Lbs

Accuracy

100:1 thru 800:10.30%

Input

Amps0-100 thru 0-800A
Frequency50-400Hz

Output

Standard1V

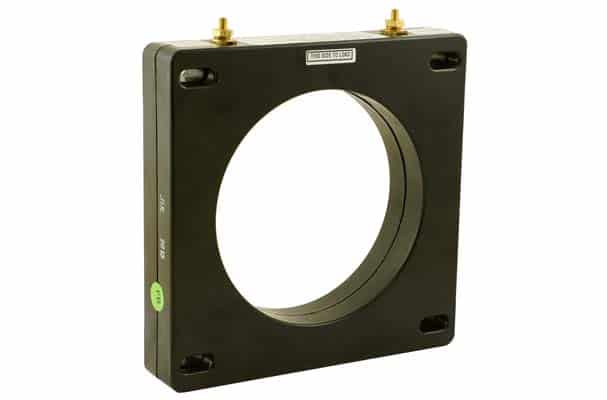

19SHT-1V-Solid-Core-Current-Transformer

  • RoHS

  • C RU US

    E238872

  • Made in the USA

Need Assistance? Call: 614-889-6152
