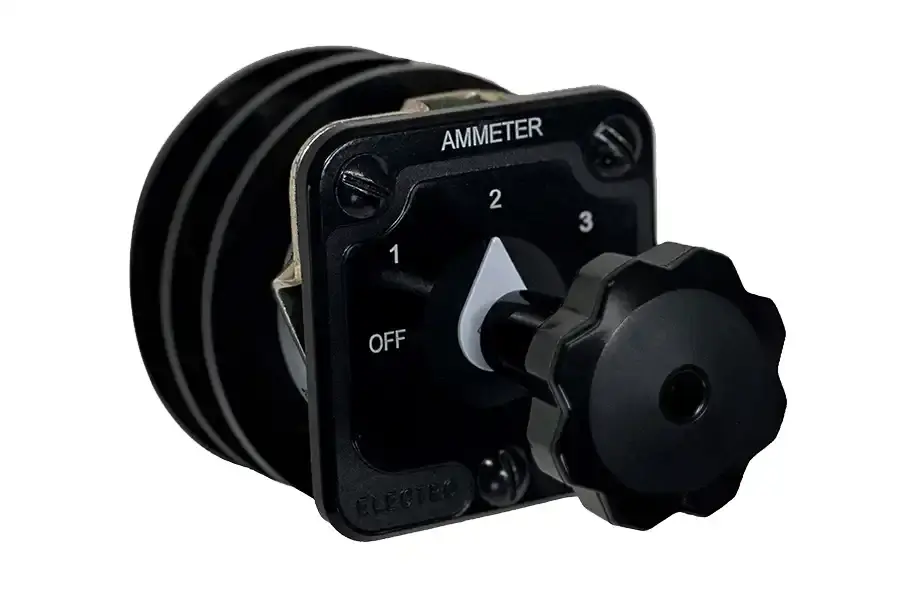

Model# 24XX
Voltage and Current Selector Switch
The 24xx series selector switches are specifically designed for both MV and LV switchgears and heavy-duty motor control centers where reliable, long lasting performance is required. It is suitable for steel panel, insulated panel, or centralized motor control clusters. A nameplate is included.
- For AMMETERS and VOLTMETERS
- Heavy duty switchgear style design.
- Terminals easily accessible for wiring.
- Large screws and saddle wiring clamps.
- Custom configurations available.
- Open continuous rating: 30A, 600V
- Interrupting Ratings: UL and CUL General Purpose
- 20A-120Vac
- 15A-240Vac
- 6A-600Vac
- 3A-125Vdc
- 1A-250Vdc
All models on this page U.L. Recognized
020743-000
E18174
