Model# 3VTR

3-in-1 RMS Voltage Transducer

  • For use when measurement of nonsinusoidal waveforms is required.
  • Designed for use in three phase systems, but may also be used to monitor three single-phase circuits where panel space is limited.
  • Accurate measurement of the true RMS value of input signals over a wide frequency range
  • 2500Vac Input/output isolation.

Overview

Response Time (90%)100ms
Loading Time(Ω)See Datasheet
Output Ripple<1.0% F.S.
Temperature Effect(-20°C to +60°C) ±1.0% Rdg.
Weight2.5 Lbs

Accuracy

Class±0.25% F.S. (60Hz.)

Input

Volts0-150V thru 0-600V
Frequency Range48 to 420 Hz

Output

Standard0-1mAdc, 4-20mAdc, 0-10Vdc or 0-5Vdc
Burden0.4VA @ F.S.

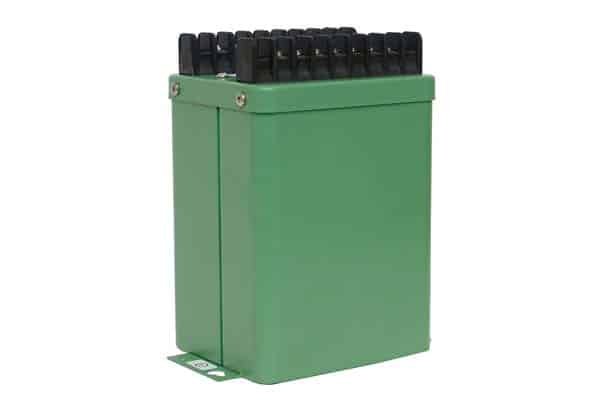

Model# 3VTR-Voltage-transducers

Need Assistance? Call: 614-889-6152
