Model# 500T
600V Class
Removable Leg Split-Core Current Transformers
- Manufactured to meet the requirements of ANSI/IEEE C57.13
- UL Recognized
- Window I.D. – Available up to 10″ X 30″
- Metering Applications
- Terminals: Brass Studs No. 8-32 UNC with one flat washer, lock washer and regular nut.
Overview
Insulation Class0.6kV, 10kV BIL Full Wave
Thermal Factor1.33 at +30° C Amb., 1.00 at +55° C Amb
Weight8-18 lbs
Accuracy
600:5 thru 6000:51%
500:52%
400:53%
300:55%
Input
Amps0-300A thru 0-6000A
Frequency 50-400Hz
Output
Standard5A

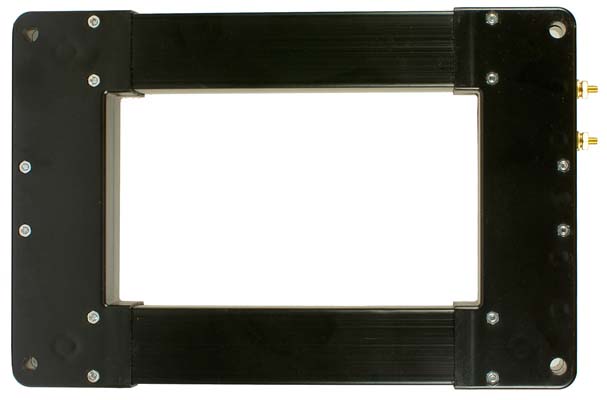

![500Tphoto 500T Split-Core Current Transformers](https://www.flex-core.com/wp-content/uploads/2022/01/500Tphoto.jpg)
E238872
