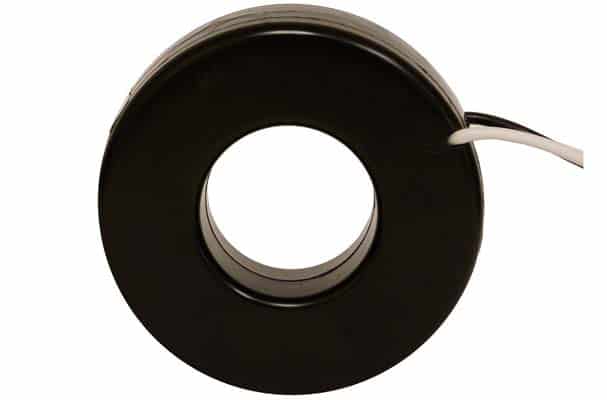

Model# 5ARL
600V
Metering Class Current Transformer
- Leads 16 AWG, 24″ long, UL105°C
- Manufactured to meet the requirements of ANSI/IEEE C57.13
- Revenue Metering Applications
- Ammeters and Watt Meters
- UL Recognized
- Window I.D. – 1.56″
Overview
Insulation Class0.6kV, 10kV BIL Full Wave
WeightApproximately 1 Lbs
Input
Amps0-100 thru 0-600A
Frequency50-400Hz
Output
Standard5A
V.A. For ±1% Class1.0VA to 30.0VA
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Amps | V.A. For ±1% Class | B0.1 | Secondary Winding Resistance (Ω@75°C) | @30°C | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5ARL-101 | 100A | 5A | 1.0 | 1.2 | 2.4 | - | - | - | 0.012 | 2.0 | 2.0 |
| 5ARL-151 | 150A | 5A | 5.0 | 0.6 | 1.2 | 2.4 | 4.8 | - | 0.019 | 2.0 | 2.0 |
| 5ARL-201 | 200A | 5A | 5.0 | 0.6 | 0.6 | 1.2 | 2.4 | 4.8 | 0.024 | 2.0 | 2.0 |
| 5ARL-251 | 250A | 5A | 12.5 | 0.6 | 0.6 | 1.2 | 2.4 | 2.4 | 0.033 | 2.0 | 1.5 |
| 5ARL-301 | 300A | 5A | 15.0 | 0.3 | 0.3 | 0.6 | 1.2 | 2.4 | 0.040 | 2.0 | 1.5 |
| 5ARL-401 | 400A | 5A | 20.0 | 0.3 | 0.3 | 0.6 | 1.2 | 1.2 | 0.091 | 1.5 | 1.0 |
| 5ARL-501 | 500A | 5A | 25.0 | 0.3 | 0.3 | 0.6 | 0.6 | 1.2 | 0.105 | 1.33 | 0.8 |
| 5ARL-601 | 600A | 5A | 30.0 | 0.3 | 0.3 | 0.6 | 0.6 | 1.2 | 0.158 | 1.0 | 0.8 |
