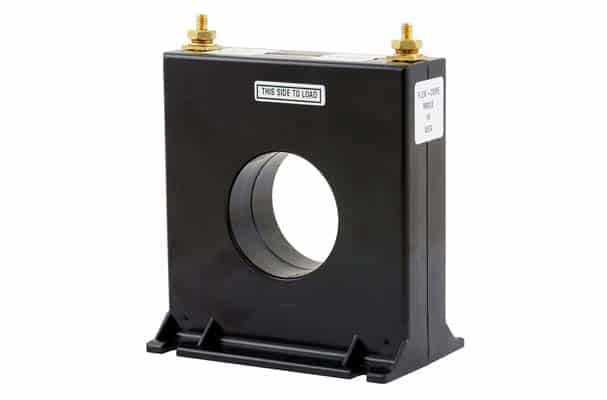

Model# 5SFT
600V
Solid-Core Current Transformer
- Terminals: Brass Studs No. 8-32 UNC with one flat washer, lock washer and regular nut.
- UL Recognized
- Window I.D. – 1.05″
- Use with Ammeters
Overview
Insulation Class0.6kV, 10kV BIL Full Wave
WeightApproximately 1.0 lb
Accuracy
@ 60Hz ±1%
Input
Amps0-100 thru 0-600A
Frequency50-400Hz
Output
Standard5A
Burden VA at 60Hz 2.0VA to 25.5VA
![5SFT Solid-Core Current Transformers_607x400 5SFT Solid-Core Current Transformers](https://www.flex-core.com/wp-content/uploads/2022/02/5SFT-Solid-Core-Current-Transformers_607x400.jpg)
E238872
