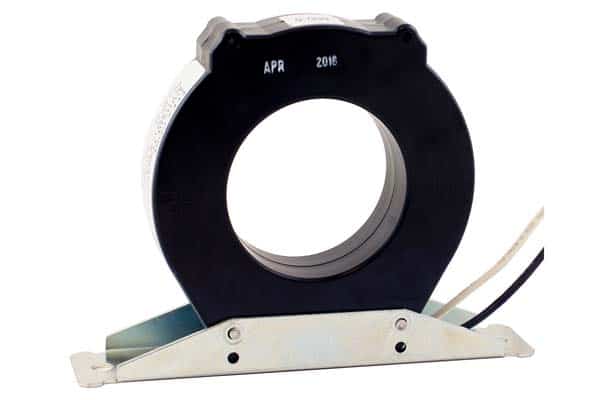

7RBL Solid-Core Current Transformer

Model# 7RBL 600V

Download Datasheet

Download Product Catalog

Insulation Class0.6kV, 10kV BIL Full Wave

Weight1.47 Lbs to 1.61 Lbs

@ 60Hz1%

Amps0-400 thru 0-800A

Frequency50-400Hz

Standard5A

Burden VA at 60Hz 15.0VA to 35.0VA

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

5 AMP Secondary Models

Catalog Number	Input Amps	Output Amps	Accuracy at 60Hz	Burden VA at 60Hz	Insulation Class	Weight
7RBL-401	400A	5A	1.0	15.0	0.6kV	1.47 Lbs
7RBL-501	500A	5A	1.0	25.0	0.6kV	1.53 Lbs
7RBL-601	600A	5A	1.0	30.0	0.6kV	1.59 Lbs
7RBL-801	800A	5A	1.0	35.0	0.6kV	1.61 Lbs
