Model# ACP 600V Class

AC Current Probe Current Transformer

Download Datasheet

Download Product Catalog

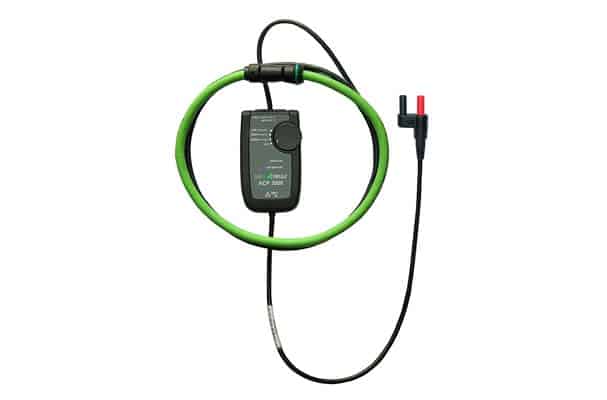

The ACP Series is an AC current probe using the Rogowski principle. The flexible and lightweight measuring head enables quick and easy installation in hard-to-reach areas. The ACP is designed for use with handheld multimeters, oscilloscopes, recorders and data loggers.

Overview

Operating Temp Range -20° C to +65° C (-4° F to +149° F) Electronics
Weight0.9 lbs

Accuracy

± 1% of range@ 45-65Hz

Input

Amps0-30A, 0-300A, 0-3000A
Frequency10Hz to 10kHz

Output

Standard3Vac

ACP Current Transformers

  • RoHS

  • CE

  • C RU US

    E323132
