Model# AT
AC Current Transducer/Transformer

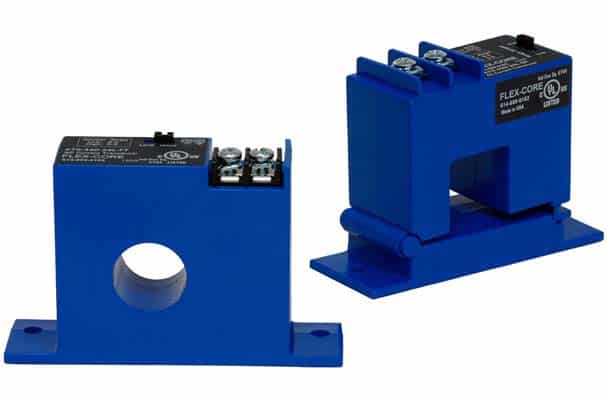

The AT series of AC Current Transducers provide a proportional analog output. Average responding (AT) designs are available.
- Jumper selectable input ranges
- Magnetically isolated output
- Available in solid or split-core designs
- UL/CE Approved
Note: The AT models are average responding.
Overview
Response Time 100ms or 300ms
Weight0.5 Lbs
Accuracy
Class1.0% F.S.
Input
Amps0-2A to 0-200A
Frequency RangeSee Table
Output
Solid-Core5Vdc, 10Vdc, 4-20mA
Split-Core5Vdc, 10Vdc, 4-20mA
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Range | Response 90% | Power Type | Accuracy | Frequency Range | Weight |
|---|---|---|---|---|---|---|---|
| AT0-420-24L-SP | 0-2 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs |
| 0-5 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs | |
| AT1-420-24L-SP | 0-10 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs |
| 0-20 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs | |
| 0-50 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs | |
| AT2-420-24L-SP | 0-100 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs |
| 0-150 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs | |
| 0-200 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs |
| Catalog Number | Input Amps | Output Range | Response 90% | Power Type | Accuracy | Frequency Range | Weight |
|---|---|---|---|---|---|---|---|
| AT1-005-000-SP | 0-10 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| 0-20 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| 0-50 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| AT2-005-000-SP | 0-100 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| 0-150 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| 0-200 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| Catalog Number | Input Amps | Output Range | Response 90% | Power Type | Accuracy | Frequency Range | Weight |
|---|---|---|---|---|---|---|---|
| AT1-010-000-SP | 0-10 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| 0-20 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| 0-50 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| AT2-010-000-SP | 0-100 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| 0-150 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| 0-200 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| Catalog Number | Input Amps | Output Range | Response 90% | Power Type | Accuracy | Frequency Range | Weight |
|---|---|---|---|---|---|---|---|
| AT0-420-24L-FT | 0-2 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs |
| 0-5 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs | |
| AT1-420-24L-FT | 0-10 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs |
| 0-20 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs | |
| 0-50 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs | |
| AT2-420-24L-FT | 0-100 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs |
| 0-150 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs | |
| 0-200 Amps | 4-20mA | 300ms | 12-40Vdc Loop Powered | 1.0% F.S. | 20-100Hz | 0.5 Lbs |
| Catalog Number | Input Amps | Output Range | Response 90% | Power Type | Accuracy | Frequency Range | Weight |
|---|---|---|---|---|---|---|---|
| AT1-005-000-FT | 0-10 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| 0-20 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| 0-50 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| AT2-005-000-FT | 0-100 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| 0-150 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| 0-200 Amps | 0-5V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| Catalog Number | Input Amps | Output Range | Response 90% | Power Type | Accuracy | Frequency Range | Weight |
|---|---|---|---|---|---|---|---|
| AT1-010-000-FT | 0-10 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| 0-20 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| 0-50 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| AT2-010-000-FT | 0-100 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
| 0-150 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs | |
| 0-200 Amps | 0-10V | 100ms | Self-Powered | 1.0% F.S. | 50-60Hz | 0.5 Lbs |
