Model# ATR
AC Current Transducer/Transformer
The ATR series of AC Current Transducers provide a proportional analog output. Average responding (AT) and true RMS (ATR) designs are available.
- Jumper selectable input ranges
- Magnetically isolated output

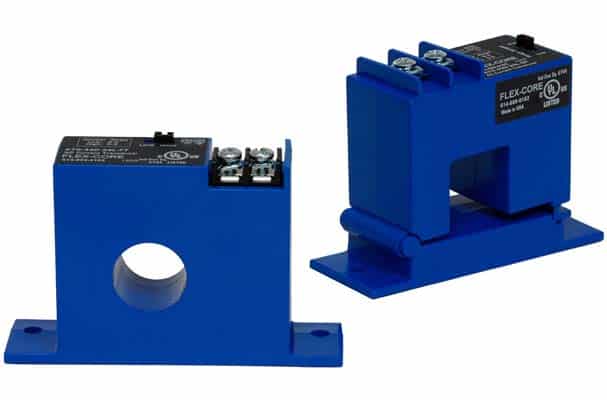

- Available in solid or split-core designs
- UL/CE Approved
The ATR models are variable frequency integration models for monitoring the load side of a VFD or distorted AC waveforms.
Overview
Response Time 90%600ms
Weight0.5 Lbs
Accuracy
Class1.0% F.S.
Input
Amps0-2A to 0-200A
Frequency Range10-400Hz
Output
Solid-Core4-20mA
Split-Core4-20mA
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Range | Response 90% | Power Type | Accuracy | Frequency Range | Weight |
|---|---|---|---|---|---|---|---|
| ATR0-420-24L-SP | 0-2 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs |
| 0-5 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs | |
| ATR1-420-24L-SP | 0-10 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs |
| 0-20 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs | |
| 0-50 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs | |
| ATR2-420-24L-SP | 0-100 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs |
| 0-150 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs | |
| 0-200 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs |
| Catalog Number | Input Amps | Output Range | Response 90% | Power Type | Accuracy | Frequency Range | Weight |
|---|---|---|---|---|---|---|---|
| ATR0-420-24L-FT | 0-2 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs |
| 0-5 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs | |
| ATR1-420-24L-FT | 0-10 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs |
| 0-20 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs | |
| 0-50 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs | |
| ATR2-420-24L-FT | 0-100 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs |
| 0-150 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs | |
| 0-200 Amps | 4-20mA | 600ms | 12-40Vdc Loop Powered | 1.0% F.S. | 10-400Hz | 0.5 Lbs |
