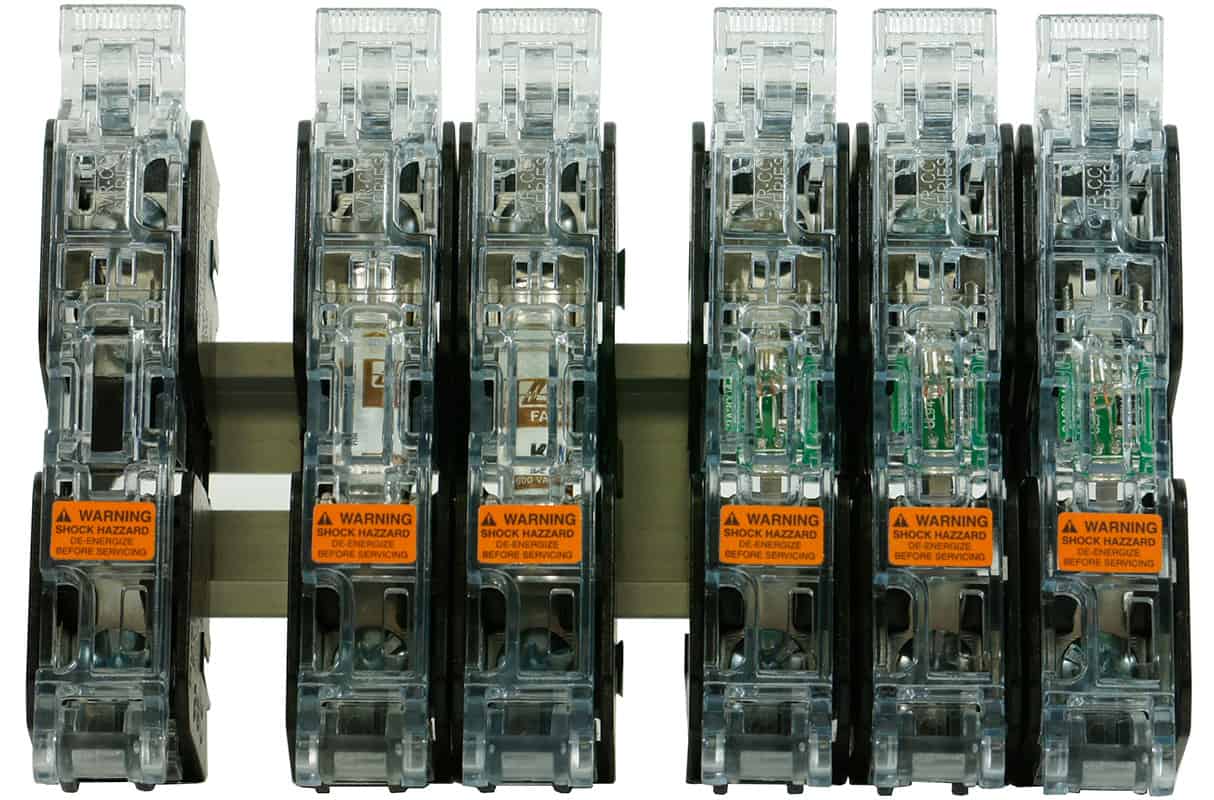

Model# BMM603 600V

DIN Rail Mount Fuse Block

Reduce labor and enhance the safety of any panel design.

  • Available in 1, 2 and 3-pole configurations to meet stocking requirements.
  • DIN-Rail and panel mount versatility allows one product to be used for multiple applications, lowering inventory cost.
  • Compact footprint consumes minimal panel space.
  • Optional see-through cover enhances safety with IP20 finger-safe protection, lockout/tagout capability and open circuit indication.
  • Tin-plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass.
  • Terminal connections meet application needs including 1/4″ spade quick connect terminals for faster panel assembly.
  • Reduce labor and enhance safety of any panel design.
  • 3 Amp fuses supplied.
  • Covers are included in the overall UL Listing/Recognition and CSA Certification
  • IP20 finger-safe. (With installed cover only).

Overview

Volts600V
AmpsUp to 30A
Withstand200kA Rms Sym
BlocksUL 94V0, self-extinguishing
CoversUL 94HB, self-extinguishing
Blocks-40°C to +120°C
Non indicating covers-40°C to +120°C
Indicating covers-20°C to +90°C*

Model# BMM603-fuse-block

  • RoHS

  • CE

  • CSA

    47235-6225-01

  • C RU
