Model# CLE8

Shipping / Availability

Shipping / Availability: Discontinued - Call for Availability

  • ANSI Specification: All meters meet ANSI C39.1 – 1981
  • Iron-Vane meters are pivot and jewel
  • Transformers not included with meter
  • Shielding: All high current AC meters contain internal shielding

Overview

Full Scale for Voltmeters0-150Vac to 0-18kVac
Full Scale for Ammeters0-50Aac to 0-4kAac
Scale Arc90°
Burden for AC Ammemeter 0.7VA, 0.7PF lag.
Burden for AC Voltmeter0.8VA unity PF
Response Time2.5 sec max.

Accuracy

Class2% @ 50/60Hz

Input

Ratings for AC Voltmeters0-150Vac to 0-600Vac
Ratings AC Ammeters0-5Aac

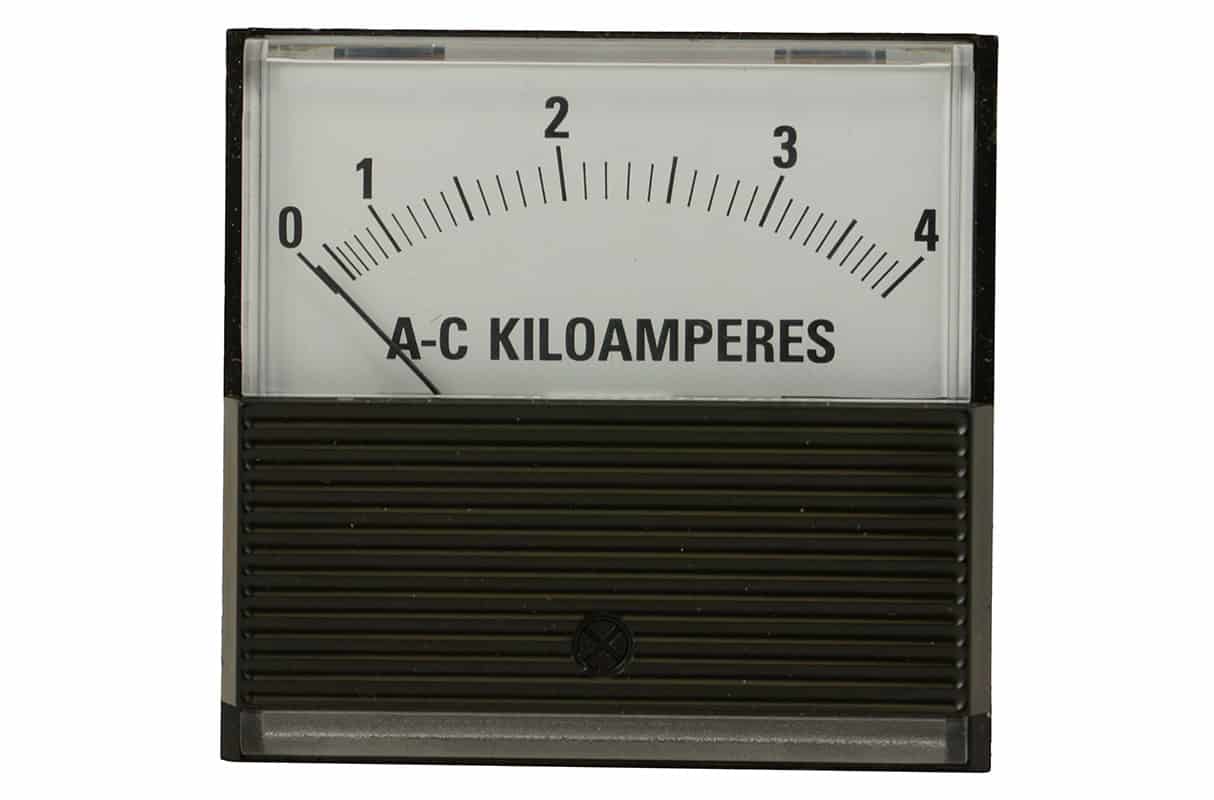

Model# CLE8-analog-panel-meter

  • RU
