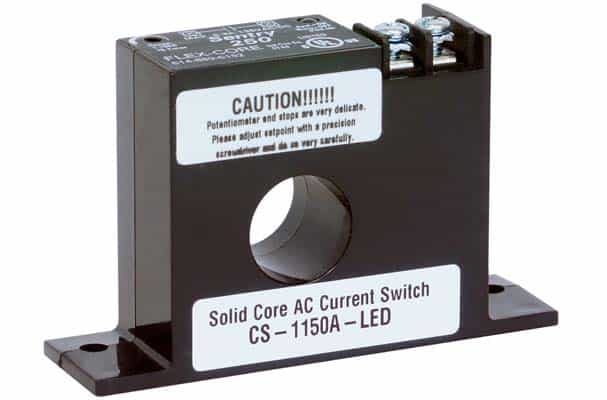

Model# CS
AC Current Operated Switch
- Solid-Core
- Adjustable Set Point
- Self-Powered
- Smart LED
- UL Listed
- Switches AC or DC
- Monitor AC for fans, pumps, and other electrical equipment
- Monitors VFD application to 6Hz
Overview
Insulation600Vac
Trip Point Adjustment15 Turns/Slip Clutch Pot
Temperature Range-20°C to +50°C
Input
Current Range1-150A
Frequency Range6-100Hz
Output
Solid State Switch Rating0.3A @ 135Vac or Vdc
Current – On-State0.3 Amps Max.
Current – Off-State<10µA
