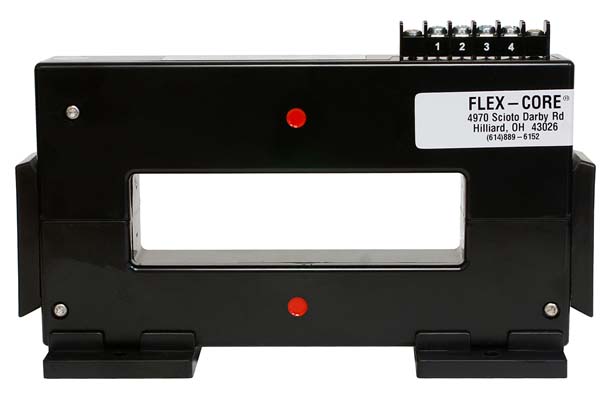

Model# CT-4809

Split-Core DC Current Transducer

The model CT-4809 is a Hall-effect current sensor with signal conditioning in a single compact package. Hall-effect current measurement is a non-contact technique that measures the magnetizing effects of current flowing in a conductor. Advantages of this technique include high electrical isolation between the measured conductor and transducer output, high over range capability and fast response to input changes. The loop-powered design simplifies installation by reducing instrument power and output signal connections to a simple 2-wire interface.


Response Time<1ms
Loading Time500Ω
Operating Range-40°C to +60°C
Weight1.5 Lbs


Class± 0.5% F.S.


Frequency RangeDC



Model# CT-4809-current-transducers

  • RoHS

  • Made in the USA

Need Assistance? Call: 614-889-6152
