Model# CT-4820

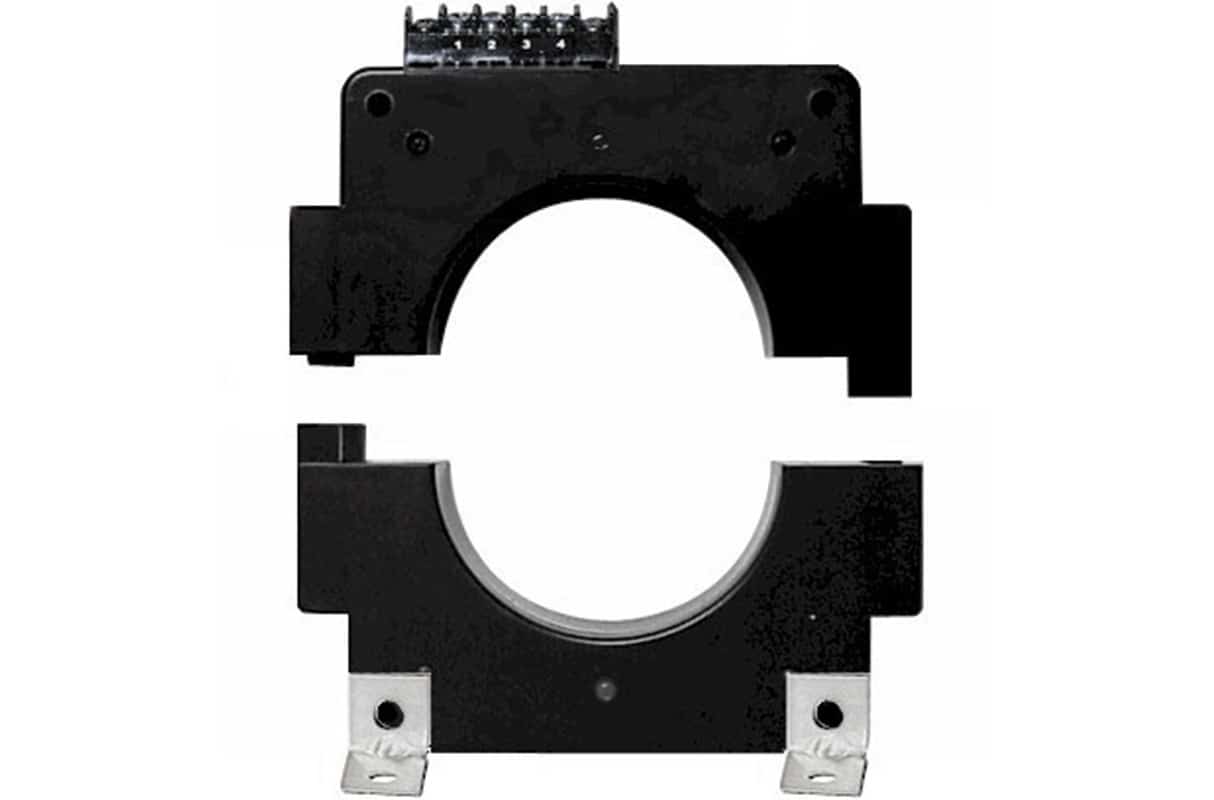

Split-Core DC Current Transducer

The model CT-4820 is a Hall-effect current sensor with signal conditioning in a single compact package. Halleffect current measurement is a non-contact technique that measures the magnetizing effects of current flowing in a conductor. Advantages of this technique include high electrical isolation between the measured conductor and transducer output, high over-range capability and fast response to input changes.

  • Sensor and Amplifier in one package
  • Output is proportional in direction and magnitude to the current flow through the window. (ac input yields ac output, dc input yields dc output).
  • Split core configuration available
  • Replaces shunts, no insertion loss

Overview

Response Time(to 90%)500µs, typical
Loading Time0-500Ω
Operating Temperature Range-40ºC to +60ºC
Temperature Effect±0.025% / ºC

Accuracy

Class±0.5% F.S.

Input

Amps0-400A

Output

Standard4-20mAdc

Model# CT-4820-current-transducers

  • RoHS

  • Made in the USA
