Model# CTC

AC Current Transducer/Transformer

The CTC Series of AC Current Transducers provide a self-powered 0-5Vdc or 0-10Vdc output or a loop-powered 4-20mAdc output proportional to window amperes. The output is derived from the average absolute value of the input and calibrated to the RMS value of a sine wave input.

  • Insensitive to polarity
  • Designed for applications requiring accurate current measurements
  • Easy to install

Overview

Output Ripple< + 0.5% F.S.
Response Time 90%< 750ms to 300ms
Output Loading>10MΩ to >500Ω
Weight0.5 oz.

Accuracy

Class0.25% F.S.

Input

Amps0-5A to 0-50A
Frequency Range50-60Hz

Output

Standard5Vdc, 10Vdc, 4-20mA

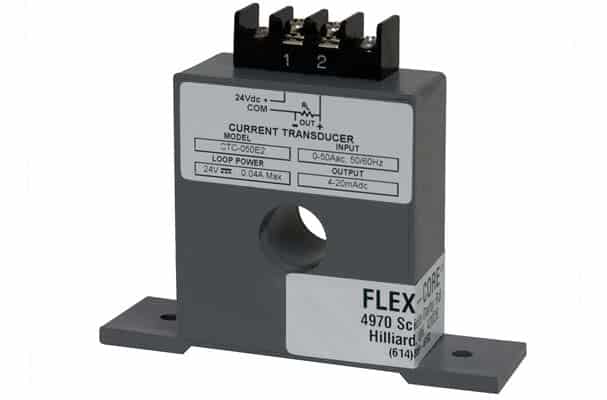

CTC-Average-RMS-Current-Transformer-Transducers

  • C UL US Listed

    E167120
