Model# CTH

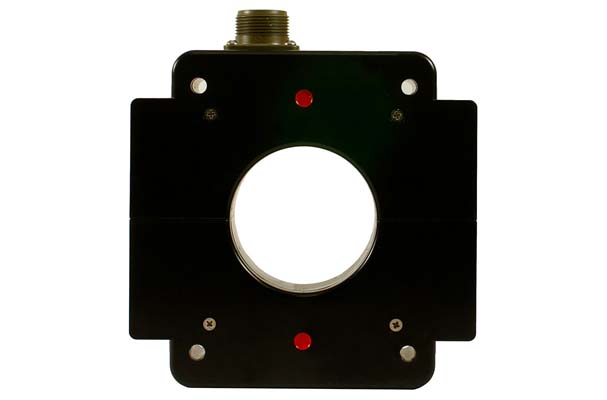

Hall Effect DC Current Transducer

The CTH Series Current Transducer is similar to the CTG Series but offers a 4-20mA output signal or a 4-12-20mA bi-directional output signal. The CTH current transducer can be operated from either a 24Vdc source or a low cost 24Vac control transformer. Available options are split core, extended temperature range, ruggedized design and 15Vdc instrument power.

  • Sensor & Amplifier in one package
  • Split Core Available
  • Output is proportional in direction and magnitude to the input current flow through the window.

AVAILABLE OPTIONS – Add Suffix in order shown

  • Split Core: Add suffix “S”
  • Extended Temp. Range to (-40OC to +60OC): Add Suffix “T”
  • Ruggedized (potted): Add Suffix “R”
  • Instrument Power Types: for (15Vdc, +10.0%) Add Suffix “-15” or for (12Vdc, +10.0%)Add Suffix “-12”
  • Optional 24Vdc Power Supply available: TMP15124C


Response Time 90%500µs, typical
Loading Time for (4-20mA Models)0-500(Ω)
Loading Time for (5V & 10V Models)>2K(Ω)
Temperature Range0°C to +40°C or -40°C to +60°


Class (All models except*) ±0.5% F.S.
Class (All CTH-050 Models)±1.0% F.S.
Class (All CTH-025 Models)±2.0% F.S.


Amps0-25A thru 0-1500A


Standard4-20mAdc, +/-10Vdc, +/-5Vdc, 4-12-20mA

Model# CTH-current-transducers
