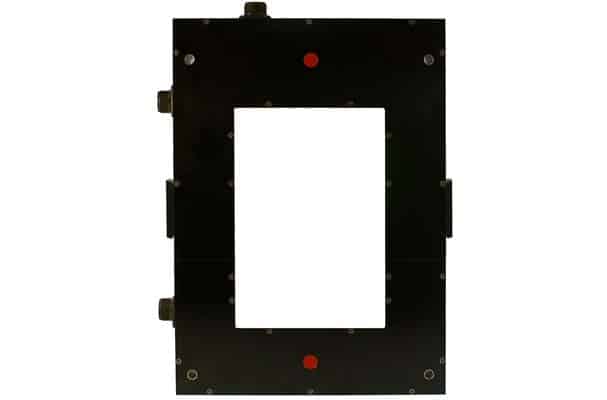

Model# CTL/CTA

Hall Effect DC Current Transducer w/ Signal Conditioner

  • Stability maintained during severe vibration.
  • Easy installation.
  • Replaces shunts.
  • No insertion loss.
  • For use with model CTA signal conditioners.
  • Ideal for use on AC systems with dc components and/or chopped waveforms.
  • Bi-directional operation.
  • Available in split-core configurations, except Model 51.


Response Time 90% 100ms
Output Ripple<0.25%F.S.
Output Loading ΩSee Datasheet
Weight1.4 Lbs


Circular Window Models0.5% Accuracy & Linearity


Amps0-35A thru 0-40000A
Frequency RangeDc - 5000Hz


Standard4-20mAdc, +/-10Vdc, +/-5Vdc, 4-12-20mA

Model# CTL/CTA Current Transducer with Signal Conditioner

  • C UL US Listed


Need Assistance? Call: 614-889-6152

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.
