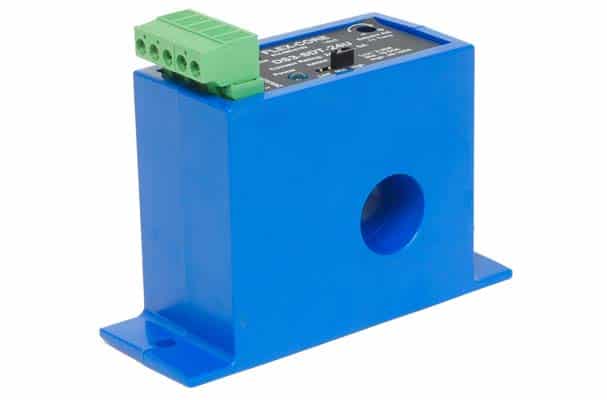

Model# DS3-SDT-24U
DC Current Switch
- Hall Effect Sensor/Signal Conditioner/Limit Alarm in a Single Package
- Field Adjustable Setpoint
- Three Jumper Selectable Input Ranges
- Frequency from DC to 400Hz
- SPDT Relay (Form C) Output
- Isolated Output
- Heating Elements-Instant Indication of Heater Status
- Power Supplies-Signals Over Current Before Equipment Failure
- Machine Operation-Instant Status of Motors, Lamps, & Other Loads
- Telecom Sites-Monitors Battery Status
Overview
Response Time 100ms (10% Above Setpoint)
Output Rating (Relay) 5.0A @ 240Vac or 5.0A @ 30Vdc (SPDT)
Isolation Voltage3000 Volts
Overload 1000% .5 Sec. - 200% Continuous
Temperature Range-20°C to +50°C
Supply Voltage24Vac or Vdc
Input
Selectable Set point Range2-20A, 10-50A, 20-100A
