Model# DT

DC Current Transducer

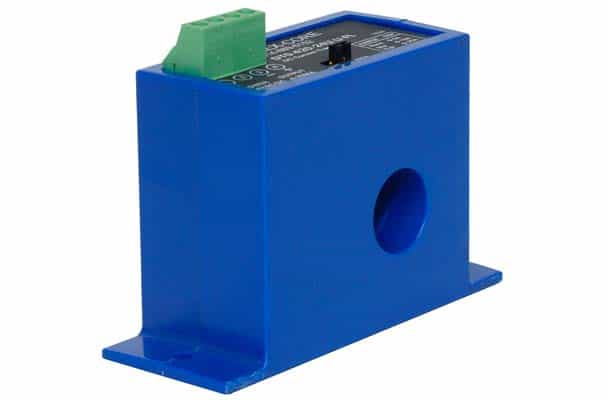

DT Series Current Transducers combine a Hall effect sensor and signal conditioner into a single package for use in DC current applications up to 200A. The DT unipolar models have jumper selectable current input ranges and industry standard 4-20mA, 0-5Vdc or 0-10Vdc outputs. Available in split core or solid core enclosures. DT Bidirectional Output models produce a + 10Vdc signal with current through the aperture in one direction and -10Vdc with current passing in the reverse direction. Split core enclosures only.

  • Solar combiner boxes
  • Battery Banks
  • Transportation
  • Electric heating elements


Response Time Solid-Core20ms (to 90% of step change)
Response Time Split-Core100ms (to 90% of step change)
Loading Time See Tables


Solid-Core1% F.S.
Split-Core1% F.S.


Amps0-5A thru 0-200A
Frequency RangeDC


Standard4-20mA, 0-5Vdc, 0-10Vdc, (±10Vdc – Bidirectional models only)


  • RoHS

  • CE

  • C UL US Listed
