Model# FCR-R822 600V

Relay Class Revenue Grade Split-Core Current Transformer

Shipping / Availability

Shipping / Availability: Normally In Stock

• Zero Sequence Applications
• Relaying Applications
• Window I.D. – 8.00″ x 22.00″
• Heat Set Polyester and Varnish Construction
• Indoor Use
• Manufactured to meet the requirements of ANSI/IEEE C57.13


Insulation Class0.6kV, 10kV BIL Full Wave
TerminalsNo. 10-32 Screws with Shorting Strap
Recommended Screw Torque11" Pounds Max
WeightApproximately 120 Lbs.


Amps50A -300A

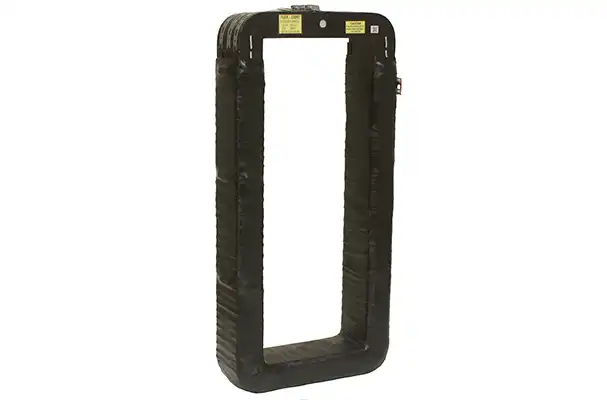

FCR-R822 Split-Core Current Transformers

  • RoHS

  • Made in the USA

Need Assistance? Call: 614-889-6152

Detailed Model Specifications

Click below to see available detailed specifications
