Model# GFP 600V

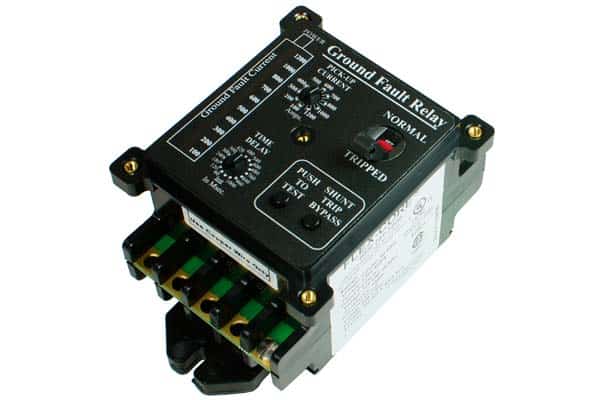

Ground Fault Current Monitor

These class 1 ground fault relays and sensors are used together to provide a system for detecting ground fault current in a grounded AC power system. When the system detects a ground fault that reaches a pre-selected current level and time delay, the relay initiates a trip signal to a shunt trip disconnect device that will open and clear the fault.

  • Optional zone interlocking
  • Integral test panel with “Push to Test” and “Shunt Trip Bypass”
  • Power on indication (LED)
  • Real time fault current level indicator
  • Positive visual trip indicator
  • Adjustable time delay
  • Discrete current threshold adjustment
  • Panel or door mounted
  • Clear plastic cover
  • Electro-mechanical relay output
  • Optional “Form C” relay contacts
  • Meets NEC Service

Overview

Operation RangeTrip Currents 5-60, 30-360, and 100-1200A
Time DelayInstantaneous to 1 second
Input Power 2VA plus shunt coil requirements
Input Withstand200kA RMS for 3 cycles, 50/60Hz
Nominal Input Voltage120Vac, 125Vdc, 48Vdc, or 24Vdc
Ambient Temperature Range-30°C to +60°C
Weight3 Lbs

Input

Power24Vac, 48Vdc, 120Vdc, 125Vdc
Inrush 1A, 4A, 8A, 10A
Continuuous1A, 3A, 4A, 8A

Model# GFP-Current-Monitor

  • CSA

    245941

  • C UL US Listed

    E234818
