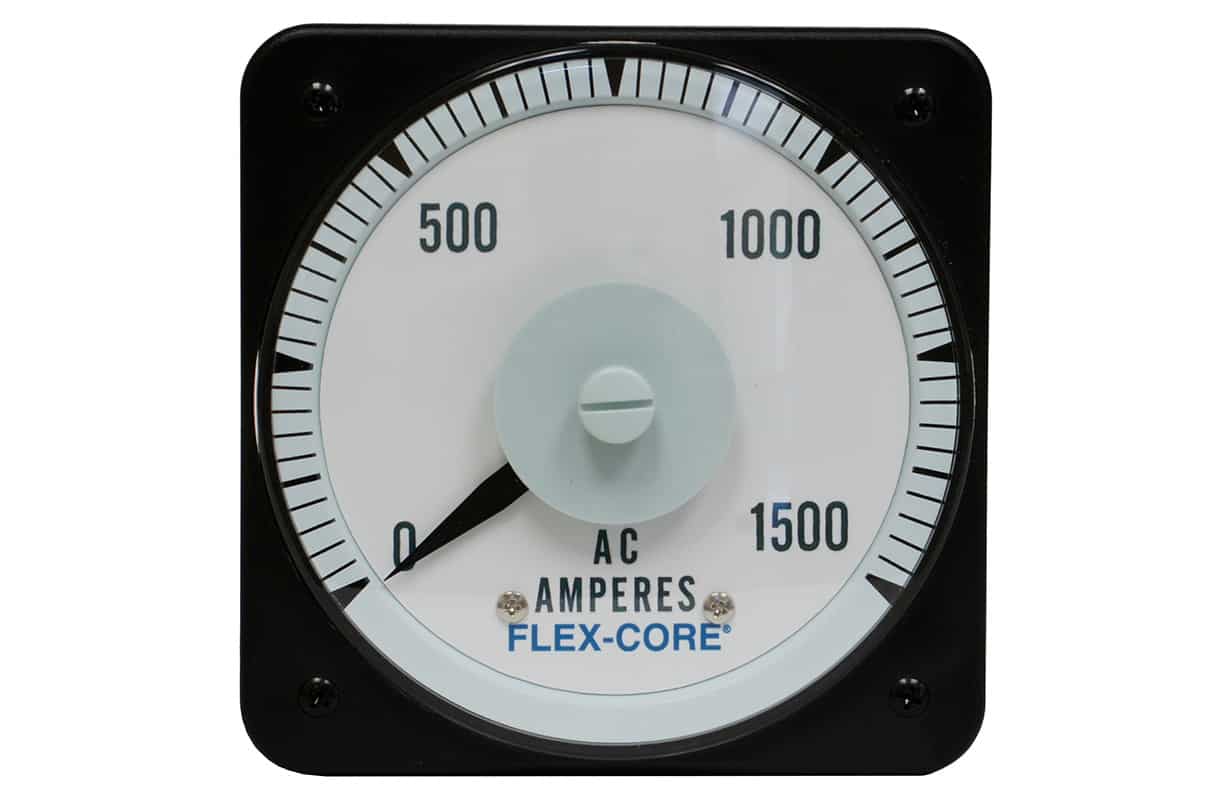

Model# HLS110
  • Designed for industrial use – strong plastic case with rugged mounting studs and electrical terminals.
  • Sealed cover and case – maintains accuracy and prolongs life.
  • ANSI Specification: Meets or exceeds ANSI C39.1 specifications.
  • Easy to read at a distance or angle – bold clean dials; no shadows; no parallax error; attractive, uncluttered scales.
  • Shielding of mechanisms ensures against magnetic field and steel panel mounting problems.
  • Two-piece dial and picket pattern. D’Arsonval movements are linear and repeatable to one percent on preprinted dials.

Overview

Full Scale AC Voltmeters 0-150Vac to 0-600Vac RMS Responding, (Self-contained)
Full Scale AC Voltmeters0-300Vac 0-150kVac RMS Responding, (150V Rated)
Full Scale AC Ammeters (5A Rated)0-50Aac to 0-6000Aac RMS Responding
Weight1.5 Lbs

Accuracy

Class±1%

Input

Rating for AC Voltmeters0-150Vac to 0-600Vac
Rating for AC Ammeters0-5Aac
Frequency Range45-65Hz

Model# HLS110-analog-switchboard-meter

  • RoHS

  • C UL US Listed

    E486912

  • Made in the USA
