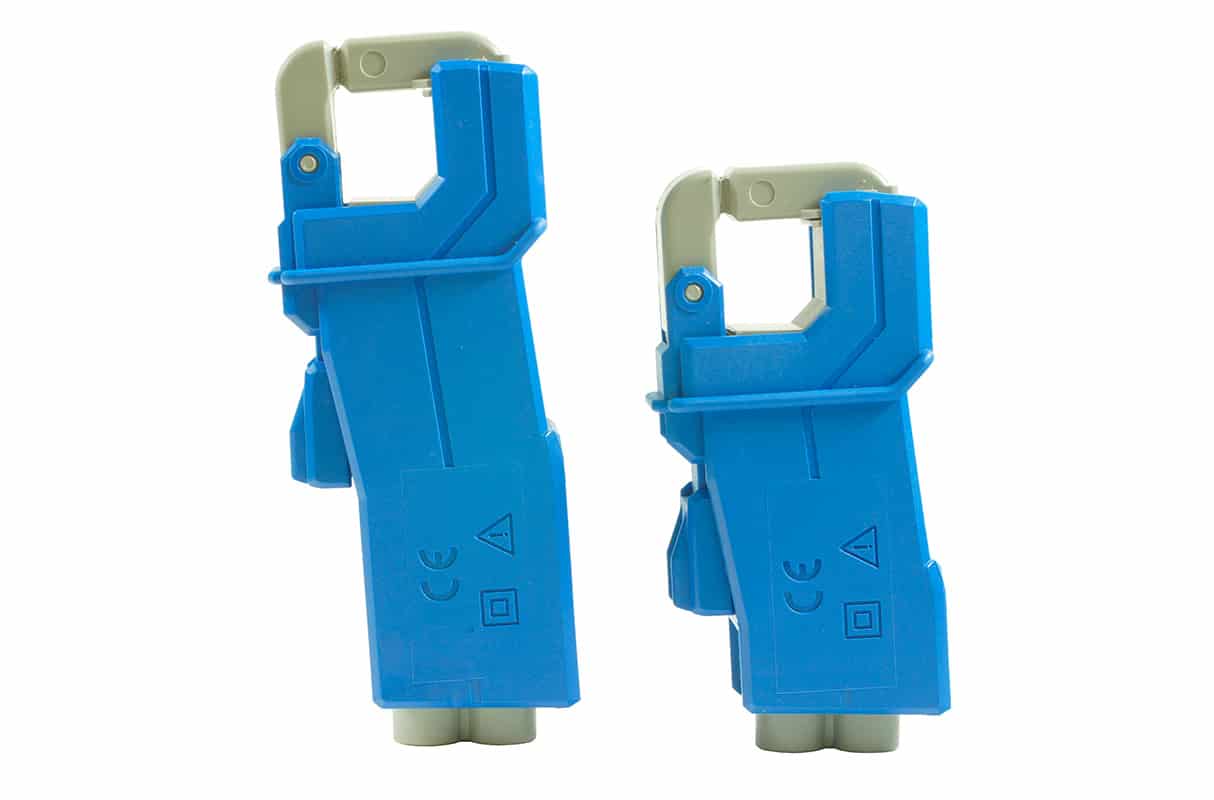

M2 AC Micro Clamp Current Transformer

Model# M2 600V

Download Datasheet

Download Product Catalog

Operating Voltage650 Volts Max

Load (Ω) >10K to >50K

Current Rating: Full Scale Continuous 100% Over Range – 3 Min.

Temperature-10°C to +50°C

Weight0.37 Lbs

Class1%

Amps0-1A thru 0-200A

Frequency Range (Hz) for 3%40 to 2,000

Frequency Range (Hz) for -3db 30 to 40,000

Standard1V, 2V, 5V, 1A, 0.1A or 0.2A

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

Catalog Number	Current Range	Output Range	Max Current	Load (Ω)	for 3%	for -3db	Weight
M2V-25-1DC	0.5 to 25Aac	1Vdc	50Aac	>50K	40 to 2,000	30 to 40,000	0.37 Lbs
M2V-100-1DC	5 to 100Aac	1Vdc	200Aac	>20K	40 to 2,000	30 to 40,000	0.37 Lbs
M2V-200-1DC	10 to 200Aac	1Vdc	200Aac	>20K	40 to 2,000	30 to 40,000	0.37 Lbs
M2V-200-2DC	10 to 200Aac	2Vdc	300Aac	>10K	40 to 2,000	30 to 40,000	0.37 Lbs

Catalog Number	Current Range	Output Range	Max Current	Load (Ω)	Phase (Deg.)	for 3%	for -3db	Weight
M2V-3-200-1	50-100-200Aac	1Vac	300Aac	>10K	3	40 to 2,000	30 to 40,000	0.37 Lbs
