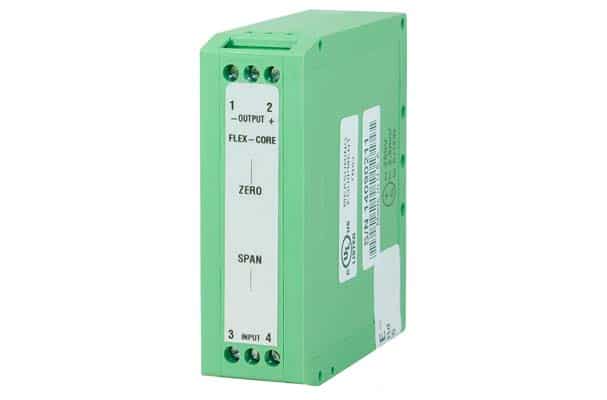

MVTR Voltage Transducers

Model# MVTR

Download Datasheet

Download Product Catalog

Transducer output is derived from the RMS value of the input. DIN-rail lengths available: Consult Factory

True RMS transducer for accurately sensing voltage in single and 3-phase installations
Ideal for non sinusoidal applications
Designed for industrial environments
Provides a fully-isolated 4-20mAdc output proportional to the measured voltage, even in non-sinusoidal waveforms
Slim profile allows maximum use of control enclosure space
Recessed terminals provide increased safety
UL94V-0 polyamide DIN-mount case style

Responce Time 200ms

Loading Time(@24Vdc. Instr. Pwr) 0-500O

Output Ripple<1.0% pk-pk

Temperature Range-20°C to +60°C

Weight0.25 Lbs or 0.90 Lbs

Class±0.25% F.S. @60Hz

Voltage0-150V thru 0-600V

Frequency Range50-400Hz

Standard4-20mAdc

Burden 150Vac Models1.0VA

Burden 300V & 600V Vac Models2.0VA

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

Catalog Number	Input AC Volts	Output Current	Output Ripple	External PT Included	Response Time	Input Burden	Frequency Range	Accuracy @ 60Hz	Weight
MVTR-150E2	0-150V	4-20mAdc	<1.0% pk-pk	No	200ms	1.0VA	50-400Hz	±0.25% F.S.	0.25 Lbs
MVTR-300E2	0-300V	4-20mAdc	<1.0% pk-pk	No	200ms	2.0VA	50-400Hz	±0.25% F.S.	0.25 Lbs
MVTR-600E2	0-600V	4-20mAdc	<1.0% pk-pk	Yes	300ms	2.0VA	50-400Hz	±0.25% F.S.	0.90 Lbs
