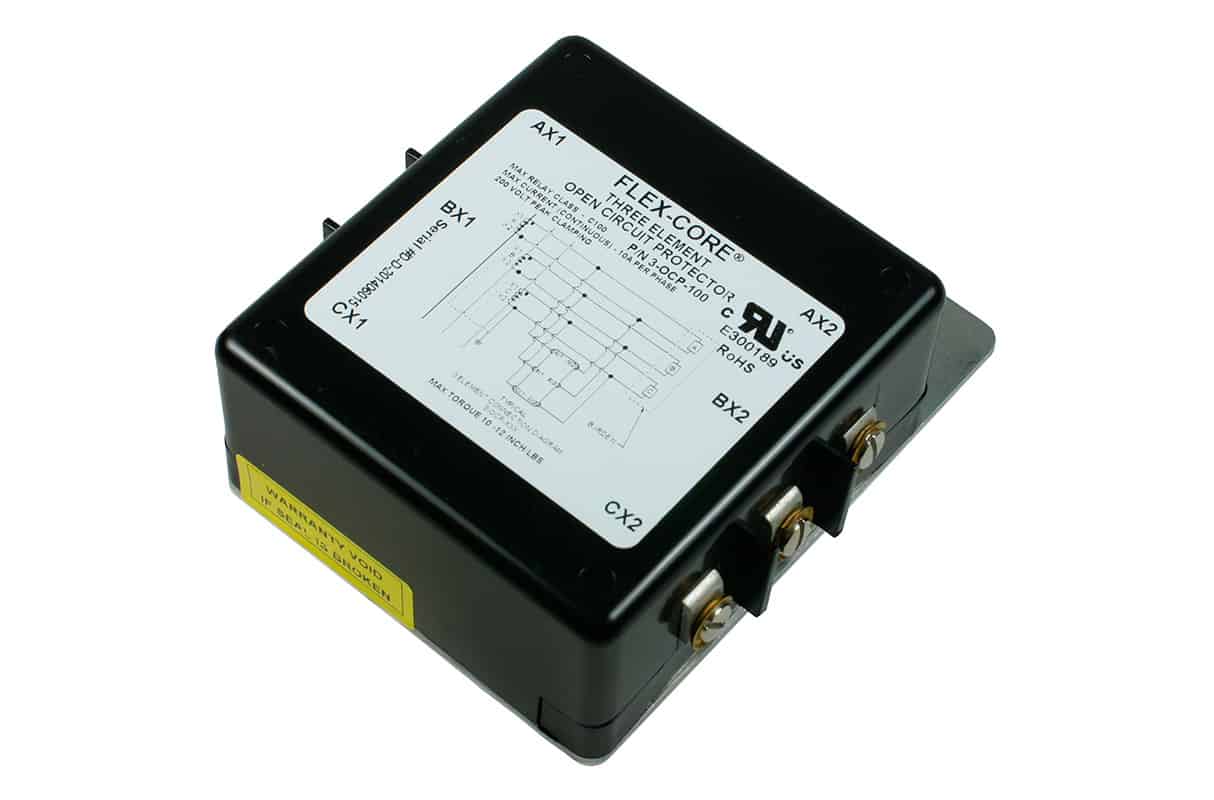

Model# OCP

CT Open Circuit Protector

  • Open circuit protection for relay classes through C400 and all classes through C400 and Metering classes.
  • Terminals are copper with brass slotted pan head screws.
  • No 8-32 x 1/4, with cupped washers.

Overview

Frequency50-400Hz
Ambient Temperature Range-30°C to +55°C
Normal Secondary Current5Aac
Short Time Overcurrent100A for 1 Sec (80A for 2 Sec.)
Max. Continuous Current 10A through one element or 7.5A through all three independent elements
Weight1.2 Lbs

Model# OCP-open-circuit-protector

  • RoHS

  • C RU US

    E3001189

Need Assistance? Call: 614-889-6152
