Model# P

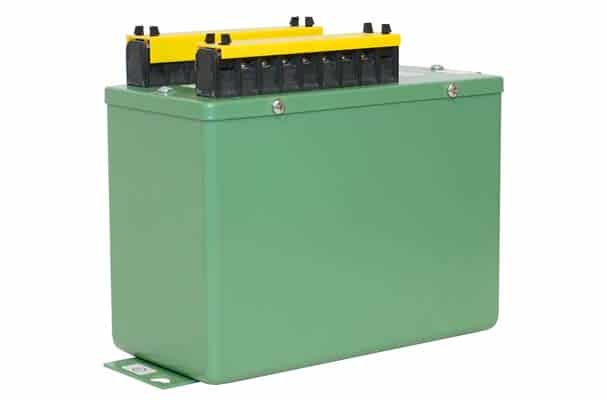

Variable Frequency AC Watt Transducer
Shipping / Availability
Shipping / Availability: Discontinued - Call for Availability
Temporarily Unavailable – Call for Availability.
- Accurate monitoring of power that contains dc and non-sinusoidal AC components.
- Ideal for use in phase angle firing circuits or frequency synthesizers.
- Bi-directional output.
- Accurate from 5 to 500 Hz., Factory calibrated.
- Available in single phase and any three phase configuration.
- Available with split-core current sensors.
Overview
Response Time (90%) 500ms
Output Loading (Ohms)See Table
Output RippleLess than 1.0% F.S. @ 60Hz
Temperature Range-0Ā°C to +40Ā°C
Accuracy
ClassĀ± 1.0% F.S.
Input
Volts or Amps0-150V thru 0-600V or 0-100A thru 0-2000A
Frequency Range5-500 Hz
Output
StandardĀ±1mAdc, Ā±10Vdc, Ā±5Vdc, 4-20mAdc Ā±20mAdc or 4-12-20mAdc
Burden< 0.1VA/phase
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-121B | 0-150V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-121BS | 0-150V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Split | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-122B | 0-300V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-122BS | 0-300V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-123B | 0-600V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-123BS | 0-600V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-124B | 0-150V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-124BS | 0-150V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-125B | 0-300V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-125BS | 0-300V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-126B | 0-600V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-126BS | 0-600V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-127B | 0-150V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-127BS | 0-150V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-128B | 0-300V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-128BS | 0-300V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-129B | 0-600V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-129BS | 0-600V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-130B | 0-150V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-130BS | 0-150V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-131B | 0-300V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-131BS | 0-300V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-132B | 0-600V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-132BS | 0-600V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-133B | 0-150V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-133BS | 0-150V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-134B | 0-300V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-134BS | 0-300V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-135B | 0-600V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-135BS | 0-600V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-136B | 0-150V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-136BS | 0-150V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-137B | 0-300V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-137BS | 0-300V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-138B | 0-600V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| P-138BS | 0-600V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 800K | V | 3 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-121D | 0-150V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-121DS | 0-150V | 0-100A | 10Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-122D | 0-300V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-122DS | 0-300V | 0-100A | 10Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-123D | 0-600V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-123DS | 0-600V | 0-100A | 10Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-124D | 0-150V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-124DS | 0-150V | 0-200A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-125D | 0-300V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-125DS | 0-300V | 0-200A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-126D | 0-600V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-126DS | 0-600V | 0-200A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-127D | 0-150V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-127DS | 0-150V | 0-400A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-128D | 0-300V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-128DS | 0-300V | 0-400A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-129D | 0-600V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-129DS | 0-600V | 0-400A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-130D | 0-150V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-130DS | 0-150V | 0-600A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-131D | 0-300V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-131DS | 0-300V | 0-600A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-132D | 0-600V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-132DS | 0-600V | 0-600A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-133D | 0-150V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-133DS | 0-150V | 0-1000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-134D | 0-300V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-134DS | 0-300V | 0-1000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-135D | 0-600V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-135DS | 0-600V | 0-1000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-136D | 0-150V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-136DS | 0-150V | 0-2000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-137D | 0-300V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-137DS | 0-300V | 0-2000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-138D | 0-600V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| P-138DS | 0-600V | 0-2000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-121X5 | 0-150V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-121X5S | 0-150V | 0-100A | 5Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-122X5 | 0-300V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-122X5S | 0-300V | 0-100A | 5Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-123X5 | 0-600V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-123X5S | 0-600V | 0-100A | 5Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-124X5 | 0-150V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-124X5S | 0-150V | 0-200A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-125X5 | 0-300V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-125X5S | 0-300V | 0-200A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-126X5 | 0-600V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-126X5S | 0-600V | 0-200A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-127X5 | 0-150V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-127X5S | 0-150V | 0-400A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-128X5 | 0-300V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-128X5S | 0-300V | 0-400A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-129X5 | 0-600V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-129X5S | 0-600V | 0-400A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-130X5 | 0-150V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-130X5S | 0-150V | 0-600A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-131X5 | 0-300V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-131X5S | 0-300V | 0-600A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-132X5 | 0-600V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-132X5S | 0-600V | 0-600A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-133X5 | 0-150V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-133X5S | 0-150V | 0-1000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-134X5 | 0-300V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-134X5S | 0-300V | 0-1000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-135X5 | 0-600V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-135X5S | 0-600V | 0-1000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-136X5 | 0-150V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-136X5S | 0-150V | 0-2000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-137X5 | 0-300V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-137X5S | 0-300V | 0-2000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-138X5 | 0-600V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| P-138X5S | 0-600V | 0-2000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-121E | 0-150V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-121ES | 0-150V | 0-100A | 4-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-122E | 0-300V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-122ES | 0-300V | 0-100A | 4-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-123E | 0-600V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-123ES | 0-600V | 0-100A | 4-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-124E | 0-150V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-124ES | 0-150V | 0-200A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-125E | 0-300V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-125ES | 0-300V | 0-200A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-126E | 0-600V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-126ES | 0-600V | 0-200A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-127E | 0-150V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-127ES | 0-150V | 0-400A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-128E | 0-300V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-128ES | 0-300V | 0-400A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-129E | 0-600V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-129ES | 0-600V | 0-400A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-130E | 0-150V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-130ES | 0-150V | 0-600A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-131E | 0-300V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-131ES | 0-300V | 0-600A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-132E | 0-600V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-132ES | 0-600V | 0-600A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-133E | 0-150V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-133ES | 0-150V | 0-1000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-134E | 0-300V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-134ES | 0-300V | 0-1000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-135E | 0-600V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-135ES | 0-600V | 0-1000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-136E | 0-150V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-136ES | 0-150V | 0-2000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-137E | 0-300V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-137ES | 0-300V | 0-2000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-138E | 0-600V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| P-138ES | 0-600V | 0-2000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-121EA | 0-150V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-121EAS | 0-150V | 0-100A | 0-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-122EA | 0-300V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-122EAS | 0-300V | 0-100A | 0-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-123EA | 0-600V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-123EAS | 0-600V | 0-100A | 0-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-124EA | 0-150V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-124EAS | 0-150V | 0-200A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-125EA | 0-300V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-125EAS | 0-300V | 0-200A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-126EA | 0-600V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-126EAS | 0-600V | 0-200A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-127EA | 0-150V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-127EAS | 0-150V | 0-400A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-128EA | 0-300V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-128EAS | 0-300V | 0-400A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-129EA | 0-600V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-129EAS | 0-600V | 0-400A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-130EA | 0-150V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-130EAS | 0-150V | 0-600A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-131EA | 0-300V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-131EAS | 0-300V | 0-600A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-132EA | 0-600V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-132EAS | 0-600V | 0-600A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-133EA | 0-150V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-133EAS | 0-150V | 0-1000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-134EA | 0-300V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-134EAS | 0-300V | 0-1000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-135EA | 0-600V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-135EAS | 0-600V | 0-1000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-136EA | 0-150V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-136EAS | 0-150V | 0-2000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-137EA | 0-300V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-137EAS | 0-300V | 0-2000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-138EA | 0-600V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| P-138EAS | 0-600V | 0-2000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-121EM | 0-150V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-121EMS | 0-150V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 10K | Ā±1.0% F.S. | 3 Lbs |
| P-122EM | 0-300V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-122EMS | 0-300V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-123EM | 0-600V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-123EMS | 0-600V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-124EM | 0-150V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-124EMS | 0-150V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 20K | Ā±1.0% F.S. | 3 Lbs |
| P-125EM | 0-300V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-125EMS | 0-300V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-126EM | 0-600V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-126EMS | 0-600V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-127EM | 0-150V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-127EMS | 0-150V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3 Lbs |
| P-128EM | 0-300V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-128EMS | 0-300V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3 Lbs |
| P-129EM | 0-600V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-129EMS | 0-600V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3 Lbs |
| P-130EM | 0-150V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-130EMS | 0-150V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 60K | Ā±1.0% F.S. | 3 Lbs |
| P-131EM | 0-300V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-131EMS | 0-300V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3 Lbs |
| P-132EM | 0-600V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-132EMS | 0-600V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3 Lbs |
| P-133EM | 0-150V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-133EMS | 0-150V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 100K | Ā±1.0% F.S. | 3 Lbs |
| P-134EM | 0-300V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-134EMS | 0-300V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-135EM | 0-600V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-135EMS | 0-600V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-136EM | 0-150V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-136EMS | 0-150V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3 Lbs |
| P-137EM | 0-300V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-137EMS | 0-300V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3 Lbs |
| P-138EM | 0-600V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| P-138EMS | 0-600V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-142B | 0-150V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-142BS | 0-150V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143B | 0-300V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143BS | 0-300V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144B | 0-600V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144BS | 0-600V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Split | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145B | 0-150V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145BS | 0-150V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146B | 0-300V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146BS | 0-300V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147B | 0-600V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147BS | 0-600V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148B | 0-150V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148BS | 0-150V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149B | 0-300V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149BS | 0-300V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150B | 0-600V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150BS | 0-600V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Split | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151B | 0-150V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151BS | 0-150V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152B | 0-300V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152BS | 0-300V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153B | 0-600V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153BS | 0-600V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154B | 0-150V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154BS | 0-150V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155B | 0-300V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155BS | 0-300V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156B | 0-600V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156BS | 0-600V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157B | 0-150V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157BS | 0-150V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158B | 0-300V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158BS | 0-300V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159B | 0-600V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159BS | 0-600V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Split | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-142D | 0-150V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-142DS | 0-150V | 0-100A | 10Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143D | 0-300V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143DS | 0-300V | 0-100A | 10Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144D | 0-600V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144DS | 0-600V | 0-100A | 10Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145D | 0-150V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145DS | 0-150V | 0-200A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146D | 0-300V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146DS | 0-300V | 0-200A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147D | 0-600V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147DS | 0-600V | 0-200A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148D | 0-150V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148DS | 0-150V | 0-400A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149D | 0-300V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149DS | 0-300V | 0-400A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150D | 0-600V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150DS | 0-600V | 0-400A | 10Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151D | 0-150V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151DS | 0-150V | 0-600A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152D | 0-300V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152DS | 0-300V | 0-600A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153D | 0-600V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153DS | 0-600V | 0-600A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154D | 0-150V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154DS | 0-150V | 0-1000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155D | 0-300V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155DS | 0-300V | 0-1000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156D | 0-600V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156DS | 0-600V | 0-1000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157D | 0-150V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157DS | 0-150V | 0-2000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158D | 0-300V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158DS | 0-300V | 0-2000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159D | 0-600V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159DS | 0-600V | 0-2000A | 10Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-142X5 | 0-150V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-142X5S | 0-150V | 0-100A | 5Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143X5 | 0-300V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143X5S | 0-300V | 0-100A | 5Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144X5 | 0-600V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144X5S | 0-600V | 0-100A | 5Vdc | 2K min. | 115Vac | Split | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145X5 | 0-150V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145X5S | 0-150V | 0-200A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146X5 | 0-300V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146X5S | 0-300V | 0-200A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147X5 | 0-600V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147X5S | 0-600V | 0-200A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148X5 | 0-150V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148X5S | 0-150V | 0-400A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149X5 | 0-300V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149X5S | 0-300V | 0-400A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150X5 | 0-600V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150X5S | 0-600V | 0-400A | 5Vdc | 2K min. | 115Vac | Split | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151X5 | 0-150V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151X5S | 0-150V | 0-600A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152X5 | 0-300V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152X5S | 0-300V | 0-600A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153X5 | 0-600V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153X5S | 0-600V | 0-600A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154X5 | 0-150V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154X5S | 0-150V | 0-1000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155X5 | 0-300V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155X5S | 0-300V | 0-1000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156X5 | 0-600V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156X5S | 0-600V | 0-1000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157X5 | 0-150V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157X5S | 0-150V | 0-2000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158X5 | 0-300V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158X5S | 0-300V | 0-2000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159X5 | 0-600V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159X5S | 0-600V | 0-2000A | 5Vdc | 2K min. | 115Vac | Split | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-142E | 0-150V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 2OK | Ā±1.0% F.S. | 3.5 Lbs |
| P-142ES | 0-150V | 0-100A | 4-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143E | 0-300V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143ES | 0-300V | 0-100A | 4-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144E | 0-600V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144ES | 0-600V | 0-100A | 4-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145E | 0-150V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145ES | 0-150V | 0-200A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146E | 0-300V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146ES | 0-300V | 0-200A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147E | 0-600V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147ES | 0-600V | 0-200A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148E | 0-150V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148ES | 0-150V | 0-400A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149E | 0-300V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149ES | 0-300V | 0-400A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150E | 0-600V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150ES | 0-600V | 0-400A | 4-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151E | 0-150V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151ES | 0-150V | 0-600A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152E | 0-300V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152ES | 0-300V | 0-600A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153E | 0-600V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153ES | 0-600V | 0-600A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154E | 0-150V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154ES | 0-150V | 0-1000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155E | 0-300V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155ES | 0-300V | 0-1000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156E | 0-600V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156ES | 0-600V | 0-1000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157E | 0-150V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157ES | 0-150V | 0-2000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158E | 0-300V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158ES | 0-300V | 0-2000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159E | 0-600V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159ES | 0-600V | 0-2000A | 4-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-142EA | 0-150V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-142EAS | 0-150V | 0-100A | 0-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143EA | 0-300V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143EAS | 0-300V | 0-100A | 0-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144EA | 0-600V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144EAS | 0-600V | 0-100A | 0-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145EA | 0-150V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145EAS | 0-150V | 0-200A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146EA | 0-300V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146EAS | 0-300V | 0-200A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147EA | 0-600V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147EAS | 0-600V | 0-200A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148EA | 0-150V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148EAS | 0-150V | 0-400A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149EA | 0-300V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149EAS | 0-300V | 0-400A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150EA | 0-600V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150EAS | 0-600V | 0-400A | 0-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151EA | 0-150V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151EAS | 0-150V | 0-600A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152EA | 0-300V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152EAS | 0-300V | 0-600A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153EA | 0-600V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153EAS | 0-600V | 0-600A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154EA | 0-150V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154EAS | 0-150V | 0-1000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155EA | 0-300V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155EAS | 0-300V | 0-1000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156EA | 0-600V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156EAS | 0-600V | 0-1000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157EA | 0-150V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157EAS | 0-150V | 0-2000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158EA | 0-300V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158EAS | 0-300V | 0-2000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159EA | 0-600V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159EAS | 0-600V | 0-2000A | 0-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-142EM | 0-150V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-142EMS | 0-150V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 20K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143EM | 0-300V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-143EMS | 0-300V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144EM | 0-600V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-144EMS | 0-600V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Split | C | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145EM | 0-150V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-145EMS | 0-150V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 40K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146EM | 0-300V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-146EMS | 0-300V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147EM | 0-600V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-147EMS | 0-600V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148EM | 0-150V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-148EMS | 0-150V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 80K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149EM | 0-300V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-149EMS | 0-300V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 160K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150EM | 0-600V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-150EMS | 0-600V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Split | D | 5-500Hz | 320K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151EM | 0-150V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-151EMS | 0-150V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 120K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152EM | 0-300V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-152EMS | 0-300V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 240K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153EM | 0-600V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-153EMS | 0-600V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 480K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154EM | 0-150V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-154EMS | 0-150V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 200K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155EM | 0-300V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-155EMS | 0-300V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156EM | 0-600V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-156EMS | 0-600V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157EM | 0-150V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-157EMS | 0-150V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 400K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158EM | 0-300V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-158EMS | 0-300V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 800K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159EM | 0-600V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| P-159EMS | 0-600V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Split | E | 5-500Hz | 1600K | Ā±1.0% F.S. | 3.5 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-160B | 0-150V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-160BS | 0-150V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-161B | 0-300V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-161BS | 0-300V | 0-100A | 0-1mAdc | 0-10K | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162B | 0-150V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162BS | 0-150V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-163B | 0-300V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-163BS | 0-300V | 0-200A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164B | 0-150V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164BS | 0-150V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-165B | 0-300V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-165BS | 0-300V | 0-400A | 0-1mAdc | 0-10K | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-166B | 0-150V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-166BS | 0-150V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-167B | 0-300V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-167BS | 0-300V | 0-600A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-168B | 0-150V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-168BS | 0-150V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-169B | 0-300V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-169BS | 0-300V | 0-1000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170B | 0-150V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170BS | 0-150V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-171B | 0-300V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| P-171BS | 0-300V | 0-2000A | 0-1mAdc | 0-10K | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-160D | 0-150V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-160DS | 0-150V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-161D | 0-300V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-161DS | 0-300V | 0-100A | 10Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162D | 0-150V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162DS | 0-150V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-163D | 0-300V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-163DS | 0-300V | 0-200A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164D | 0-150V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164DS | 0-150V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-165D | 0-300V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-165DS | 0-300V | 0-400A | 10Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-166D | 0-150V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-166DS | 0-150V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-167D | 0-300V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-167DS | 0-300V | 0-600A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-168D | 0-150V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-168DS | 0-150V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-169D | 0-300V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-169DS | 0-300V | 0-1000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170D | 0-150V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170DS | 0-150V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-171D | 0-300V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| P-171DS | 0-300V | 0-2000A | 10Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-160X5 | 0-150V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-160X5S | 0-150V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-161X5 | 0-300V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-161X5S | 0-300V | 0-100A | 5Vdc | 2K min. | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162X5 | 0-150V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162X5S | 0-150V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-163X5 | 0-300V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-163X5S | 0-300V | 0-200A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164X5 | 0-150V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164X5S | 0-150V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-165X5 | 0-300V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-165X5S | 0-300V | 0-400A | 5Vdc | 2K min. | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-166X5 | 0-150V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-166X5S | 0-150V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-167X5 | 0-300V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-167X5S | 0-300V | 0-600A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-168X5 | 0-150V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-168X5S | 0-150V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-169X5 | 0-300V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-169X5S | 0-300V | 0-1000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170X5 | 0-150V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170X5S | 0-150V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-171X5 | 0-300V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| P-171X5 | 0-300V | 0-2000A | 5Vdc | 2K min. | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-160E | 0-150V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-160ES | 0-150V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-161E | 0-300V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-161ES | 0-300V | 0-100A | 4-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162E | 0-150V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162ES | 0-150V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-163E | 0-300V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-163ES | 0-300V | 0-200A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164E | 0-150V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164ES | 0-150V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-165E | 0-300V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-165ES | 0-300V | 0-400A | 4-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-166E | 0-150V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-166ES | 0-150V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-167E | 0-300V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-167ES | 0-300V | 0-600A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-168E | 0-150V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-168ES | 0-150V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-169E | 0-300V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-169ES | 0-300V | 0-1000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170E | 0-150V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170ES | 0-150V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-171E | 0-300V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| P-171ES | 0-300V | 0-2000A | 4-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-160EA | 0-150V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-160EAS | 0-150V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-161EA | 0-300V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-161EAS | 0-300V | 0-100A | 0-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162EA | 0-150V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162EAS | 0-150V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-163EA | 0-300V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-163EAS | 0-300V | 0-200A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164EA | 0-150V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164EAS | 0-150V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-165EA | 0-300V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-165EAS | 0-300V | 0-400A | 0-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-166EA | 0-150V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-166EAS | 0-150V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-167EA | 0-300V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-167EAS | 0-300V | 0-600A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-168EA | 0-150V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-168EAS | 0-150V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-169EA | 0-300V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-169EAS | 0-300V | 0-1000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170EA | 0-150V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170EAS | 0-150V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-171EA | 0-300V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| P-171EAS | 0-300V | 0-2000A | 0-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| Catalog Number | Input AC Volts | Input AC Amps | Output | Output Loading (Ī©) | Instrument Power | Core Type | Sensor Size | Frequency Range | F.S. Watts | Accuracy | Weight (excluding) Sensors |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-160EM | 0-150V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-160EMS | 0-150V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 30K | Ā±1.0% F.S. | 4 Lbs |
| P-161EM | 0-300V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-161EMS | 0-300V | 0-100A | 4-12-20mA | 0-500 | 115Vac | Solid | C | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-164EM | 0-150V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162EMS | 0-150V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 60K | Ā±1.0% F.S. | 4 Lbs |
| P-162EM | 0-300V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-163EMS | 0-300V | 0-200A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-163EM | 0-150V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-164EMS | 0-150V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 120K | Ā±1.0% F.S. | 4 Lbs |
| P-165EM | 0-300V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-165EMS | 0-300V | 0-400A | 4-12-20mA | 0-500 | 115Vac | Solid | D | 5-500Hz | 240K | Ā±1.0% F.S. | 4 Lbs |
| P-166EM | 0-150V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-166EMS | 0-150V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 180K | Ā±1.0% F.S. | 4 Lbs |
| P-167EM | 0-300V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-167EMS | 0-300V | 0-600A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 360K | Ā±1.0% F.S. | 4 Lbs |
| P-168EM | 0-150V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-168EMS | 0-150V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 300K | Ā±1.0% F.S. | 4 Lbs |
| P-169EM | 0-300V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-169EMS | 0-300V | 0-1000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170EM | 0-150V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-170EMS | 0-150V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 600K | Ā±1.0% F.S. | 4 Lbs |
| P-171EM | 0-300V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
| P-171EMS | 0-300V | 0-2000A | 4-12-20mA | 0-500 | 115Vac | Solid | E | 5-500Hz | 1200K | Ā±1.0% F.S. | 4 Lbs |
Resources
View engineering resources and whitepapers.
