Model# P32 600V

AC Clamp-On Current Transformer

  • Meets IEC Standard 348 Class II
  • Output Terminals: 4MM Safety Terminals Cable – optional
  • Cable Size: 3.27″
  • Bus Bar Size: 5.0″ x 1.8″ or 4.0″ x 2.25″
  • Dimensions: 5.83″ x 13.11″ x 2.05″
  • Color: Current Output — Gray, Voltage Output — Blue
  • Special cables and connectors are available.

Overview

Operating Voltage600 Volts Max
Isolation Test5.55kV – 1 Min.
Current Rating Full ScaleContinuous 100% Over Range – 3 Min.
Temperature-10°C to +50°C
Weight3.5 Lbs

Accuracy

Class1%

Input

Amps0-1000A thru 0-3000A

Output

Standard1V, 2V, 3V, 5V, 1A, 2A, 3A or 5A

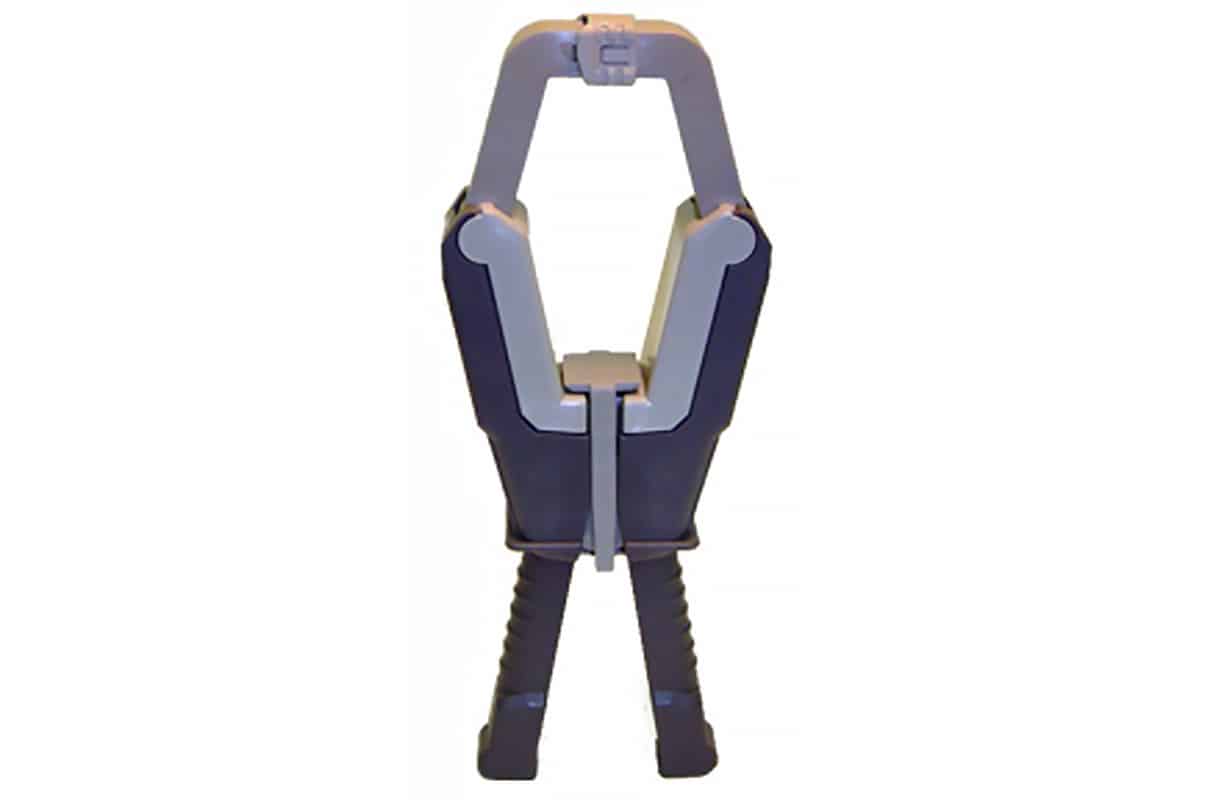

P32-clamp-on-current-transformer
