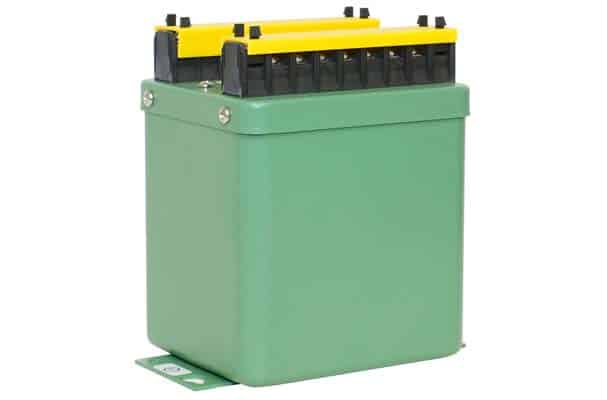

Model# PC4 Watt Transducer

Model# PC4

3-Phase AC Watt Transducer

Download Datasheet

Download Product Catalog

Equipment power consumption.
For use with SCR controls, chopped waveforms, or where harmonic components exist.
Standard outputs provide signal for interface with meters, recorders, or data acquisition equipment.
Accurate regardless of variations in voltage, current, power factor, or load.
Output is proportional to true power delivered to a load; P=EI(COS ø). Provides bi-directional operation.

Overview

Response Time (90%) 250ms

Loading Time (Ω)See Tables

Output Ripple< 1.0% F.S. @ 60Hz

Temperature Range-10°C to +60°C

Accuracy

Class± 0.5% F.S.

Input

Volts or Amps 0-150V thru 0-600V/0-1A thru 0-25A

Frequency Range400Hz

Output

Standard±1mAdc, 4-20mAdc, 4-12-20mAdc, ±10Vdc or ±5Vdc

Burden1.25VA/Phase

Request Quote

Order Online

Need Assistance? Call: 614-889-6152

Not the right part? View all Transducers

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

0-1MADC SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Response at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-103A	0-150V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	100
PC4-103B	0-150V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	100
PC4-104A	0-300V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	200
PC4-104B	0-300V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	200
PC4-105A	0-600V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	500
PC4-105B	0-600V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	500
PC4-106A	0-150V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	250
PC4-106B	0-150V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	250
PC4-107A	0-300V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	500
PC4-107B	0-300V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	500
PC4-108A	0-600V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	1K
PC4-108B	0-600V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	1K
PC4-001A	0-150V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	500
PC4-001B	0-150V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	500
PC4-002A	0-300V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	1K
PC4-002B	0-300V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	1K
PC4-003A	0-600V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	2K
PC4-003B	0-600V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	2K
PC4-010A	0-150V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	1K
PC4-010B	0-150V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	1K
PC4-011A	0-300V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	2K
PC4-011B	0-300V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	2K
PC4-012A	0-600V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	4K
PC4-012B	0-600V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	4K
PC4-019A	0-150V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	1.5K
PC4-019B	0-150V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	1.5K
PC4-020A	0-300V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	3K
PC4-020B	0-300V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	3K
PC4-021A	0-600V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	6K
PC4-021B	0-600V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	6K
PC4-117A	0-150V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	2K
PC4-117B	0-150V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	2K
PC4-110A	0-300V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	4K
PC4-110B	0-300V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	4K
PC4-111A	0-600V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	8K
PC4-111B	0-600V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	8K
PC4-118A	0-150V	0-25A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	2.5K
PC4-118B	0-150V	0-25A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	2.5K
PC4-119A	0-300V	0-25A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	5K
PC4-119B	0-300V	0-25A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	2.2Lbs	5K

10VDC SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Response at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-103C	0-150V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	100
PC4-103D	0-150V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	100
PC4-104C	0-300V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	200
PC4-104D	0-300V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	200
PC4-105C	0-600V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-105D	0-600V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-106C	0-150V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	250
PC4-106D	0-150V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	250
PC4-107C	0-300V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-107D	0-300V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-108C	0-600V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-108D	0-600V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-001C	0-150V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-106D	0-150V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	250
PC4-107C	0-300V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-107D	0-300V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-108C	0-600V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-108D	0-600V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-001C	0-150V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-001D	0-150V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-002C	0-300V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-002D	0-300V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-003C	0-600V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-003D	0-600V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-010C	0-150V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-010D	0-150V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-011C	0-300V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-011D	0-300V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-012C	0-600V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-012D	0-600V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-019C	0-150V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1.5K
PC4-019D	0-150V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1.5K
PC4-020C	0-300V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	3K
PC4-020D	0-300V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	3K
PC4-021C	0-600V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	6K
PC4-021D	0-600V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	6K
PC4-117C	0-150V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-117D	0-150V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-110C	0-300V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-110D	0-300V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-111C	0-600V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	8K
PC4-111D	0-600V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	8K
PC4-118C	0-150V	0-25A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2.5K
PC4-118D	0-150V	0-25A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2.5K
PC4-119C	0-300V	0-25A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	5K
PC4-119D	0-300V	0-25A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	5K

5VDC SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Response at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-103CX5	0-150V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	100
PC4-103X5	0-150V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	100
PC4-104CX5	0-300V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	200
PC4-104X5	0-300V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	200
PC4-105CX5	0-600V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-105X5	0-600V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-106CX5	0-150V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	250
PC4-106X5	0-150V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	250
PC4-107CX5	0-300V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-107X5	0-300V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-108CX5	0-600V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-108X5	0-600V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-001CX5	0-150V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-001X5	0-150V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-002CX5	0-300V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-002X5	0-300V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-003CX5	0-600V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-003X5	0-600V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-010CX5	0-150V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-010X5	0-150V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-011CX5	0-300V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-011X5	0-300V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-012CX5	0-600V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-012X5	0-600V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-019CX5	0-150V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1.5K
PC4-019X5	0-150V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1.5K
PC4-020CX5	0-300V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	3K
PC4-020X5	0-300V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	3K
PC4-021CX5	0-600V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	6K
PC4-021X5	0-600V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	6K
PC4-117CX5	0-150V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-117X5	0-150V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-110CX5	0-300V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-110X5	0-300V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-111CX5	0-600V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	8K
PC4-111X5	0-600V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	8K
PC4-118CX5	0-150V	0-25A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2.5K
PC4-118X5	0-150V	0-25A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2.5K
PC4-119CX5	0-300V	0-25A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	5K
PC4-119X5	0-300V	0-25A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	2.2 Lbs	5K

4-20MA SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Response at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-103E	0-150V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	100
PC4-103E2	0-150V	0-1A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	100
PC4-103EY30	0-150V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	100
PC4-104E	0-300V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	200
PC4-104E2	0-300V	0-1A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	200
PC4-104EY30	0-300V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	200
PC4-105E	0-600V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-105E2	0-600V	0-1A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-105EY30	0-600V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-106E	0-150V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	250
PC4-106E2	0-150V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	250
PC4-106EY30	0-150V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	250
PC4-107E	0-300V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-107E2	0-300V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-107EY30	0-300V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-108E	0-600V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-108E2	0-600V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-108EY30	0-600V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-001E	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-001E2	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-001EY30	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-002E	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-002E2	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-002EY30	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-003E	0-600V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-003E2	0-600V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-003EY30	0-600V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-010E	0-150V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-010E2	0-150V	0-10A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-010EY30	0-150V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-011E	0-300V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-011E2	0-300V	0-10A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-011EY30	0-300V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-012E	0-600V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-012E2	0-600V	0-10A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-012EY30	0-600V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-019E	0-150V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1.5K
PC4-019E2	0-150V	0-15A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1.5K
PC4-019EY30	0-150V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1.5K
PC4-020E	0-300V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	3K
PC4-020E2	0-300V	0-15A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	3K
PC4-020EY30	0-300V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	3K
PC4-021E	0-600V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	6K
PC4-021E2	0-600V	0-15A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	6K
PC4-021EY30	0-600V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	6K
PC4-117E	0-150V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-117E2	0-150V	0-20A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-117EY30	0-150V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-110E	0-300V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-110E2	0-300V	0-20A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-110EY30	0-300V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-111E2	0-600V	0-20A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	8K
PC4-111E	0-600V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	8K
PC4-111EY30	0-600V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	8K
PC4-118E	0-150V	0-25A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2.5K
PC4-118E2	0-150V	0-25A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2.5K
PC4-118EY30	0-150V	0-25A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2.5K
PC4-119E	0-300V	0-25A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	5K
PC4-119E2	0-300V	0-25A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	2.2 Lbs	5K
PC4-119EY30	0-300V	0-25A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	5K

4-12-20MA SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Response at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-103EM	0-150V	0-1A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	100
PC4-104EM	0-300V	0-1A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	200
PC4-105EM	0-600V	0-1A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-106EM	0-150V	0-2.5A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	250
PC4-107EM	0-300V	0-2.5A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-108EM	0-600V	0-2.5A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-001EM	0-150V	0-5A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	500
PC4-002EM	0-300V	0-5A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-003EM	0-600V	0-5A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-010EM	0-150V	0-10A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1K
PC4-011EM	0-300V	0-10A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-012EM	0-600V	0-10A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-019EM	0-150V	0-15A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	1.5K
PC4-020EM	0-300V	0-15A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	3K
PC4-021EM	0-600V	0-15A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	6K
PC4-117EM	0-150V	0-20A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2K
PC4-110EM	0-300V	0-20A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	4K
PC4-111EM	0-600V	0-20A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	8K
PC4-118EM	0-150V	0-25A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	2.5K
PC4-119EM	0-300V	0-25A	4-12-40mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	2.2 Lbs	5K

0-1MADC SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Response at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-120A	0-150V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-120B	0-150V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-121A	0-300V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-121B	0-300V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-122A	0-600V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-122B	0-600V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-004A	0-150V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-004B	0-150V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-005A	0-300V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-005B	0-300V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-006A	0-600V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-006B	0-600V	0-2.5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-013A	0-150V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-013B	0-150V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-014A	0-300V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-014B	0-300V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-015A	0-600V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-015B	0-600V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-022A	0-150V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-022B	0-150V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-023A	0-300V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-023B	0-300V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-024A	0-600V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-024B	0-600V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-112A	0-150V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-112B	0-150V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K4K
PC4-113A	0-300V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-113B	0-300V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-114A	0-600V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-114B	0-600V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-123A	0-150V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-123B	0-150V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-124A	0-300V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K
PC4-124B	0-300V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K

10VDC SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT)

Catalog Number	Input Ac Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Responce at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-120C	0-150V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-120D	0-150V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-121C	0-300V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-121D	0-300V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-122C	0-600V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-122D	0-600V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-004C	0-150V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-004D	0-150V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-005C	0-300V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-005D	0-300V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-006C	0-600V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-006D	0-600V	0-2.5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-013C	0-150V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-013D	0-150V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-014C	0-300V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-014D	0-300V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-015C	0-600V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-015D	0-600V	0-5A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-022C	0-150V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-022D	0-150V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-023C	0-300V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-023D	0-300V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-024C	0-600V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-024D	0-600V	0-10A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-112C	0-150V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-112D	0-150V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-113C	0-300V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-113D	0-300V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-114C	0-600V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-114D	0-600V	0-15A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-123C	0-150V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-123D	0-150V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-124C	0-300V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K
PC4-124D	0-300V	0-20A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K

5VDC SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Responce at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-120CX5	0-150V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-120X5	0-150V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-121CX5	0-300V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-121X5	0-300V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-122CX5	0-600V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-122X5	0-600V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-004CX5	0-150V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-004X5	0-150V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-005CX5	0-300V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-005X5	0-300V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-006CX5	0-600V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-006X5	0-600V	0-2.5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-013CX5	0-150V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-013X5	0-150V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-014CX5	0-300V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-014X5	0-300V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-015CX5	0-600V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-015X5	0-600V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-022CX5	0-150V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-022X5	0-150V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-023CX5	0-300V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-023X5	0-300V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-024CX5	0-600V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-024X5	0-600V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-112CX5	0-150V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-112X5	0-150V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-113CX5	0-300V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-113X5	0-300V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-114CX5	0-600V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-114X5	0-600V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-123CX5	0-150V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-123X5	0-150V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-124CX5	0-300V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K
PC4-124X5	0-300V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K

4-20MA SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Responce at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-120E	0-150V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-120E2	0-150V	0-1A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-120EY30	0-150V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-121E	0-300V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-121E2	0-300V	0-1A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-121EY30	0-300V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-122E	0-600V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-122E2	0-600V	0-1A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-122EY30	0-600V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-004E	0-150V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-004E2	0-150V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-004EY30	0-150V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-005E	0-300V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-005E2	0-300V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-005EY30	0-300V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-006E	0-600V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-006E2	0-600V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-006EY30	0-600V	0-2.5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-013E	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-013E2	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-014E	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-014E2	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-014EY30	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-015E	0-600V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-015E2	0-600V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-015EY30	0-600V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-022E	0-150V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-022E2	0-150V	0-10A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-022EY30	0-150V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-023E	0-300V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-023E2	0-300V	0-10A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-023EY30	0-300V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-024E	0-600V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-024E2	0-600V	0-10A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-024EY30	0-600V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-112E	0-150V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-112E2	0-150V	0-15A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-112EY30	0-150V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-113E	0-300V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-113E2	0-300V	0-15A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-113EY30	0-300V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-114E	0-600V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-114E2	0-600V	0-15A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-114EY30	0-600V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-123E	0-150V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-123E2	0-150V	0-20A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-123EY30	0-150V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-124E	0-300V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K
PC4-124E2	0-300V	0-20A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K
PC4-124EY30	0-300V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K

4-12-20MA SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Responce at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-120EM	0-150V	0-1A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	200
PC4-121EM	0-300V	0-1A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	400
PC4-122EM	0-600V	0-1A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	800
PC4-006EM	0-150V	0-2.5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	1K
PC4-005EM	0-300V	0-2.5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-004EM	0-600V	0-2.5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-015EM	0-150V	0-5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	2K
PC4-014EM	0-300V	0-5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-013EM	0-600V	0-5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	*K
PC4-022EM	0-150V	0-10A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	3K
PC4-023EM	0-300V	0-10A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	6K
PC4-024EM	0-600V	0-10A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	12K
PC4-112EM	0-150V	0-15A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	4K
PC4-113EM	0-300V	0-15A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	8K
PC4-114EM	0-600V	0-15A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	16K
PC4-123EM	0-150V	0-20A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	5K
PC4-124EM	0-300V	0-20A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	3.7 Lbs	10K

0-1MADC SECONDARY MODELS - THREE PHASE FOUR WIRE (THREE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Responce at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-125A	0-150V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-125B	0-150V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-126A	0-300V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-126B	0-300V	0-1A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-007A	0-150V	0-5A †	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-007B	0-150V	0-5A †	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-008A	0-150V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-008B	0-150V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-7.5A	0-300V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-7.5B	0-300V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-8.5A	0-300V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-8.5B	0-300V	0-5A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016A	0-150V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016B	0-150V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-017A	0-300V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-017B	0-300V	0-10A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-025A	0-150V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-025B	0-150V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-026A	0-300V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-026B	0-300V	0-15A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-115A	0-150V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-115B	0-150V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-116A	0-300V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-116B	0-300V	0-20A	0-1mAdc	115V	1.25VA/Phase	0-10K	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-127A	0-150V	0-25A	0-1mAdc	115V	1.25VA/Phase	1.25VA/Phase	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-127B	0-150V	0-25A	0-1mAdc	115V	1.25VA/Phase	1.25VA/Phase	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-128A	0-300V	0-25A	0-1mAdc	115V	1.25VA/Phase	1.25VA/Phase	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K
PC4-128B	0-300V	0-25A	0-1mAdc	115V	1.25VA/Phase	1.25VA/Phase	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K

10VDC SECONDARY MODELS - THREE PHASE FOUR WIRE (THREE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Responce at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-125C	0-150V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-125D	0-150V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-126C	0-300V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-126D	0-300V	0-1A	10Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-007C	0-150V	0-5A †	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-007D	0-150V	0-5A †	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-008C	0-150V	0-5A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-008D	0-150V	0-5A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-7.5C	0-300V	0-5A †	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-7.5D	0-300V	0-5A †	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-8.5C	0-300V	0-5A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-8.5D	0-300V	0-5A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016C	0-150V	0-10A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016D	0-150V	0-10A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-017C	0-300V	0-10A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-017D	0-300V	0-10A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-025C	0-150V	0-15A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-025D	0-150V	0-15A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-026C	0-300V	0-15A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-026D	0-300V	0-15A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-115C	0-150V	0-20A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-115CX5	0-150V	0-20A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-115D	0-150V	0-20A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-116C	0-300V	0-20A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-116CX5	0-300V	0-20A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-116D	0-300V	0-20A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-127C	0-150V	0-25A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-127D	0-150V	0-25A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-128C	0-300V	0-25A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K
PC4-128D	0-300V	0-25A	10Vdc	115V	1.25VA/Phase	2K min	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K

5VDC SECONDARY MODELS - THREE PHASE FOUR WIRE (THREE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Responce at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-125CX5	0-150V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-125X5	0-150V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-126CX5	0-300V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-126X5	0-300V	0-1A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-007CX5	0-150V	0-5A †	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-007X5	0-150V	0-5A †	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-008CX5	0-150V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-008X5	0-150V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-7.5CX5	0-300V	0-5A †	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-7.5X5	0-300V	0-5A †	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-8.5CX5	0-300V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-8.5X5	0-300V	0-5A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016CX5	0-150V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016X5	0-150V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-017CX5	0-300V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-017X5	0-300V	0-10A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-025CX5	0-150V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-025X5	0-150V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-026CX5	0-300V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-026X5	0-300V	0-15A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-115X5	0-150V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-115EY30	0-150V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-116CX5	0-300V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-116X5	0-300V	0-20A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-127CX5	0-150V	0-25A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-127X5	0-150V	0-25A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-128CX5	0-300V	0-25A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K
PC4-128X5	0-300V	0-25A	5Vdc	115V	1.25VA/Phase	2K min.	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K

4-20MA SECONDARY MODELS - THREE PHASE FOUR WIRE (THREE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Responce at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-125E	0-150V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-125E2	0-150V	0-1A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-125EY30	0-150V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-126E	0-300V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-126E2	0-300V	0-1A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-126EY30	0-300V	0-1A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-007E	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-007E2	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-007EY30	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-008E	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-008E2	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-008EY30	0-150V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-7.5E	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-7.5E2	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-7.5EY30	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-8.5E	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-8.5E2	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-8.5EY30	0-300V	0-5A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016E	0-150V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016E2	0-150V	0-10A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016EY30	0-150V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-017E	0-300V	0-10A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-017E2	0-300V	0-10A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-017EY30	0-300V	0-10A	4-24-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-025E	0-150V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-025E2	0-150V	0-15A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-025EY30	0-150V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-026E	0-300V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-026E2	0-300V	0-15A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-026EY30	0-300V	0-15A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-115E	0-150V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-115E2	0-150V	0-20A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-115EY30	0-150V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-116E	0-300V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-116E2	0-300V	0-20A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-116EY30	0-300V	0-20A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-127E	0-150V	0-25A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-127E2	0-150V	0-25A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-127EY30	0-150V	0-25A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-128E	0-300V	0-25A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K
PC4-128E2	0-300V	0-25A	4-20mA	115V	1.25VA/Phase	0-600	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K
PC4-128EY30	0-300V	0-25A	4-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K

4-12-20MA SECONDARY MODELS - THREE PHASE FOUR WIRE (THREE ELEMENT)

Catalog Number	Input AC Volts	Input AC Amps	Output	Instrument Power	Input Burden	Output Loading (Ω)	Responce at 90%	Frequency Range	Accuracy	Weight	F.S. Watts
PC4-125EM	0-150V	0-1A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	300
PC4-126EM	0-300V	0-1A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	600
PC4-007EM	0-150V	0-5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-008EM	0-150V	0-5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-7.5EM	0-300V	0-5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	1.5K
PC4-8.5EM	0-300V	0-5A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-016EM	0-150V	0-10A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	3K
PC4-017EM	0-300V	0-10A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-025EM	0-150V	0-15A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	4.5K
PC4-026EM	0-300V	0-15A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	9K
PC4-115EM	0-150V	0-20A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	6K
PC4-116EM	0-300V	0-20A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	12K
PC4-127EM	0-150V	0-25A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	7.5K
PC4-128EM	0-300V	0-25A	4-12-20mA	115V	1.25VA/Phase	0-1500	250ms	400Hz	±0.5% F.S.	4.2 Lbs	15K

Resources

View engineering resources and whitepapers.

Div. Morlan & Associates, Inc.

Sales: +1-614-889-6152

PC4 Watt Transducers

3-Phase AC Watt Transducer

Overview

Accuracy

Input

Output

Need Assistance? Call: 614-889-6152

Detailed Model Specifications

Resources

Have a Question? Need assistance with a specific application?

Catalog

Latest News

Support

Contact FLEX-CORE®
