Model# RCT-1800 600V Class

Single Phase Rogowski Coil Current Probe

The RCT-1800 series is an AC current probe using the Rogowski principle to measure AC current rated from 250 to 5,000 Amps for single and three phase electrical applications. The coils open at the connector junction and can be installed on an existing cable or buss-bar easily in a matter of seconds. The RCT-1800 is designed for use with handheld multimeters, oscilloscopes, recorders, and data loggers.

Overview

Phase Angle<0.5 degrees
Weight6.5 oz.

Accuracy

±1%@ 10% to 300% rated current

Input

Amps0-250A Thru 0-5000A

Output

Standard Single Phase - 0.333V

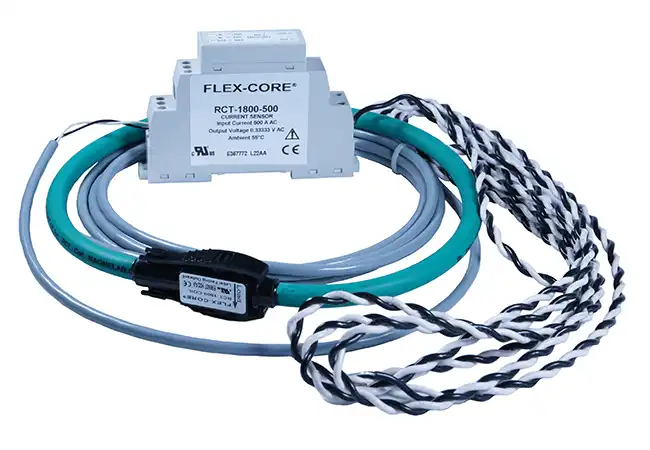

RCT-1800 Rogowski Coil CT

  • RoHS

  • CE

  • C RU US

    E96927

Need Assistance? Call: 614-889-6152
