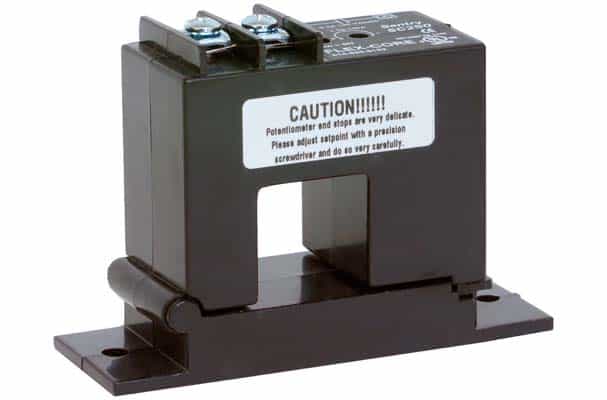

Model# SCS

AC Current Operated Switch

  • Split-Core
  • Adjustable Set Point
  • Self-Powered
  • Smart LED
  • UL Listed
  • Switches AC or DC
  • Monitor AC for fans, pumps, and other electrical equipment.
  • Monitors VFD application to 6Hz

Overview

Insulation600Vac
Trip Point Adjustment4 Turns/Slip Clutch Pot
Temperature Range-20°C to +50°C

Input

Current Range 1.75-150A
Frequency Range6-100Hz

Output

Solid State Switch Rating0.3A @ 135Vac or Vdc
Current – On-State0.3 Amps Max.
Current – Off-State<10µA

Model# CSC-Current-Sensing-Switch

  • CE

  • C UL US Listed

    E129625
