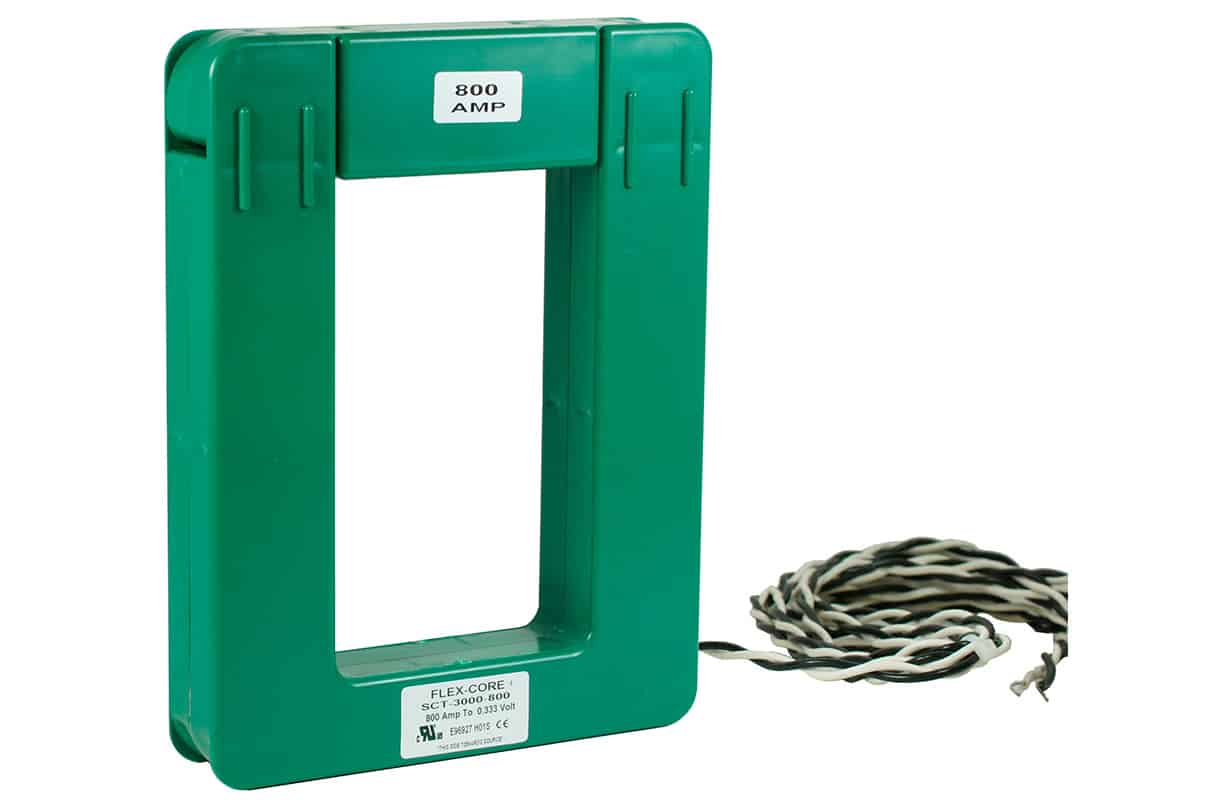

Model# SCT-3000 600V Class

Split Core Current Transformers

The SCT-3000 split-core current transformers “sense” AC current up to 3000 Amps passing through the window. These split-core current transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The SCT series split-core current transformers have the highest industry standards both for interleaving joints and the self-locking mechanism.

Overview

Phase Angle< 2 degrees measured at 50% rated
Weight2.5 lbs

Accuracy

±1% @ 10% to 130% rated current

Input

Amps0-400A thru 0-3000A
Frequency50Hz to 400Hz

Output

Standard0.333V

SCT-3000 Split Core Current Transformers

  • RoHS

  • CE

  • C RU US

    E96927

Need Assistance? Call: 614-889-6152

Detailed Model Specifications

Click below to see available detailed specifications
