Model# SG

Process Signal Conditioner

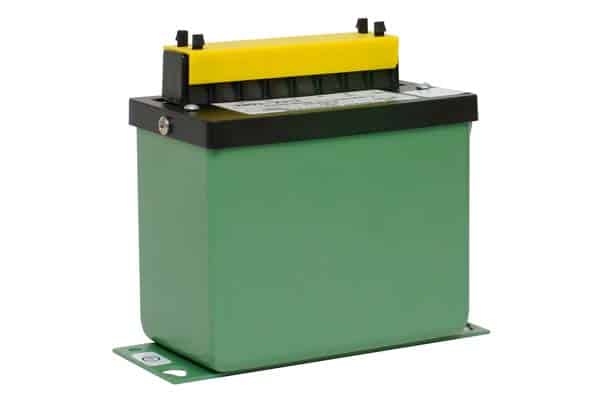

The family of SG Process Signal conditioners provide an isolated linear output signal from a standard or non-standard input process signal. Factory calibrated for various input and output signals.

  • Process Control
  • Signal Isolation
  • Signal Conversion
  • Termination: 14 AWG max.
  • Dielectric Test:
    – Input to Output: 1000Vdc
    – Input/Output to Instant Power: 1500Vdc
  • Instrument Power: 95-135Vac, 50-400Hz,3.5VA
    – Optional 230Vac, 50-60Hz
    – Optional DC Instrument Power Available. Consult factory
  • Temperature Range: -20°C to +65°C
  • Temperature Effect: ±0.01%/°C

Accuracy

Set Point± 0.25% F.S.
Linearity± 0.1% F.S.

Input

Burden: (Ω) See Datasheet
Overrange2 X rated input
Response Time1ms

Output

Load on Output: (Ω) See Datasheet
Response Time10ms
Ripple< ±0.5% F.S.

Model# SG-process-signal-conditioner
