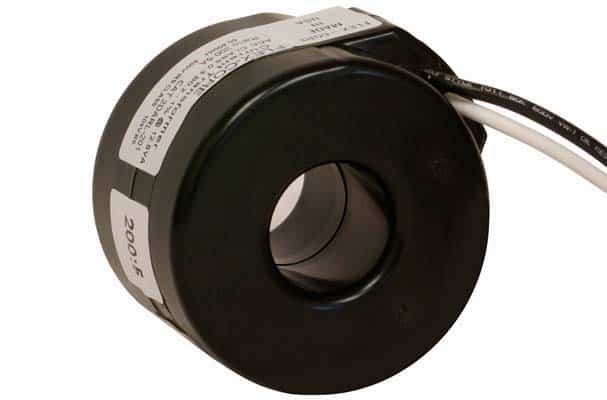

Model# 2DARL
600V
Metering Class Current Transformer
- Leads 16 AWG, 24″ long, UL105°C
- Manufactured to meet the requirements of ANSI/IEEE C57.13
- Revenue Metering Applications
- UL Recognized
- Window I.D. – 1.00″
Overview
Insulation Class0.6kV, 10kV BIL Full Wave
Rating Factor1.0 @ 30°C
WeightApproximately 0.9 lbs
Input
Amps0-50 thru 0-300A
Frequency50-400Hz
Output
Standard5A
V.A. For ±1% Class 2.5VA to 20.0VA
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Amps | V.A. For ±1% Class | B0.1 | B0.5 | B0.9 | Secondary Winding Resistance (Ω@75°C) | Insulation Class | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 2DARL-500 | 50A | 5A | 2.5 | 4.8 | - | - | 0.008 | 0.6kV | 0.9 Lbs |
| 2DARL-600 | 60A | 5A | 2.5 | 2.1 | 4.8 | - | 0.011 | 0.6kV | 0.9 Lbs |
| 2DARL-750 | 75A | 5A | 3.5 | 2.1 | 2.4 | - | 0.015 | 0.6kV | 0.9 Lbs |
| 2DARL-800 | 80A | 5A | 4.0 | 2.1 | 2.4 | 4.8 | 0.016 | 0.6kV | 0.9 Lbs |
| 2DARL-101 | 100A | 5A | 5.0 | 2.1 | 2.4 | 4.8 | 0.018 | 0.6kV | 0.9 Lbs |
| 2DARL-121 | 120A | 5A | 5.0 | 2.1 | 2.4 | 2.4 | 0.022 | 0.6kV | 0.9 Lbs |
| 2DARL-1250 | 125A | 5A | 5.0 | 0.6 | 1.2 | 2.4 | 0.028 | 0.6kV | 0.9 Lbs |
| 2DARL-151 | 150A | 5A | 10.0 | 0.6 | 1.2 | 1.2 | 0.031 | 0.6kV | 0.9 Lbs |
| 2DARL-201 | 200A | 5A | 12.5 | 0.3 | 0.6 | 1.2 | 0.047 | 0.6kV | 0.9 Lbs |
| 2DARL-251 | 250A | 5A | 15.0 | 0.3 | 0.3 | 0.6 | 0.074 | 0.6kV | 0.9 Lbs |
| 2DARL-301 | 300A | 5A | 20.0 | 0.3 | 0.3 | 0.6 | 0.089 | 0.6kV | 0.9 Lbs |
