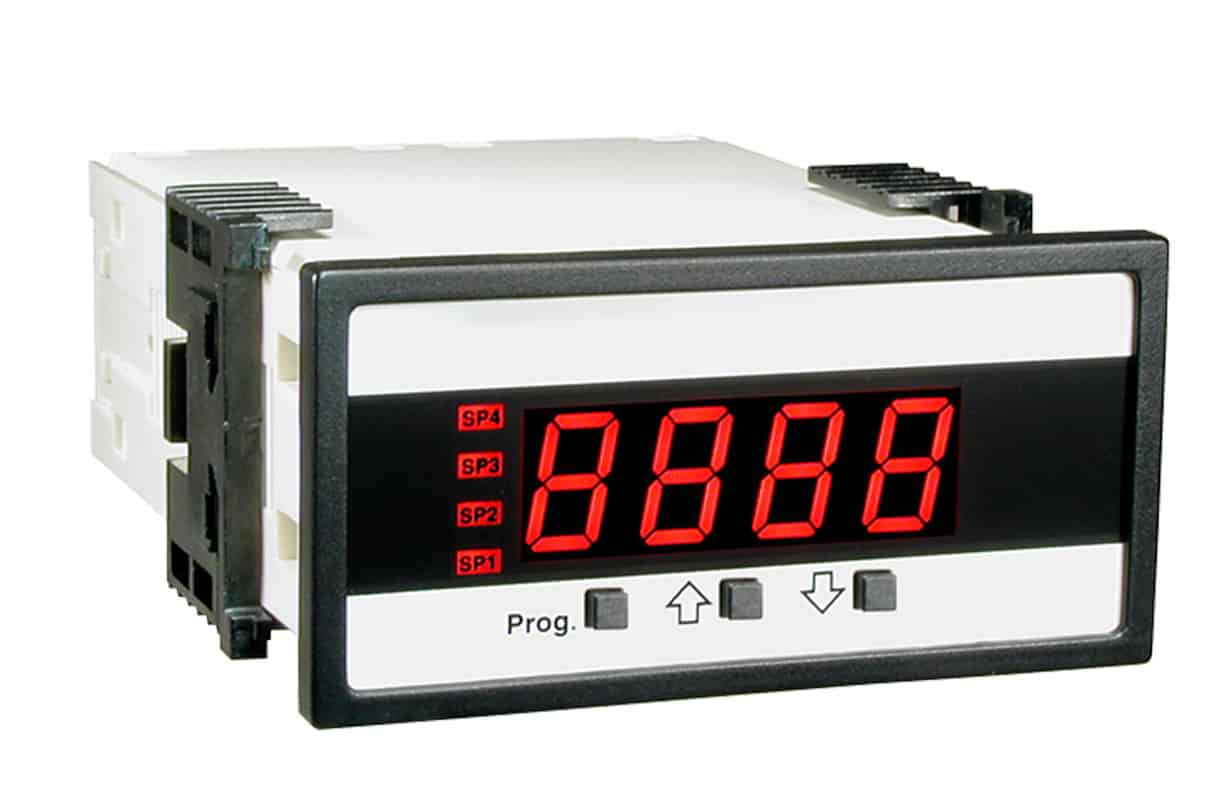

Model# DL-40PSF
Shipping / Availability

Shipping / Availability: Discontinued - No Longer Available

DISCONTINUED – No Longer Available

Program Button – This button is used to move from one program step to the next. When used simultaneously with the UP ARROW button, it initiates the Programming mode. When used simultaneously with the DOWN ARROW button, it initiates the Set point Program Mode.

  • Up Arrow – Increases the value of the displayed parameter.
  • Down Arrow – Decreases the value of the displayed parameter.
  • Annunciator – may be programmed to indicate the set point status of up to 4 parameters.
  • Intelligent Digital Meter Relay for Monitoring, Measurement, and Control Applications
  • Enclosure: 1/8 DIN CASE
  • Screw Terminal Adapter: Included for inputs and power.
  • LED display:
    – (-1999 to +9999)
    – 7 Segment, 0.56″, 4 Digit
    – Or optional:0.8″ or Super Bright

Overview

Inst. Power85-265Vac/95-370Vdc or 15-48Vac/10-72Vdc
Output ControlTimed On/Off or High/Low
WeightApproximately 1 lbs

Accuracy

Class±0.05% of reading, ±2 digit

Input

AC & DC Options Over 22 Input Modules

Output

Standard Up to four 5A 240Vac Form A Relays .(16 Bit) 0-10V
Standard4-20mA Isolated Relays (User scalable)

Model# DL-40PSF-Digital-Panel-Meter

  • CE
