Model# JVW-5C 15KV

Outdoor Medium Voltage Potential Transformer

Download Datasheet

Download Product Catalog

The JVW-5C is a 15kV outdoor rated potential transformer which is manufactured using Hydrophobic Cycloaliphatic Epoxy (HCEP) that provides long lasting performance and reliability for outdoor applications.

Manufactured to meet ANSI/IEEE C57.13 requirements and is suitable for operating meters, instruments, relays and control devices.

The JVW-5C is available in a single bushing style for grounded wye application or a double bushing style for open delta and ungrounded wye applications.

The single bushing model has a voltage range from 7200/12470GY to 8400/14560GY while the double bushing model has a voltage range from 7200/12470Y to 14400/14400Y with a metering accuracy class of 0.3WXMYX, 1.2ZZ.

  • Designed for outdoor service. Suitable for operating meters, instruments, relays and control devices.
  • Height: 16.34″
  • Depth:  13.69″
  • Width:  11.50″

Overview

Thermal Rating(Volt-Amperes) 1500VA @ 30°C Amb.
Rated Voltage Factor 1.1
Insulation Class15.5kV – 110kV BIL
WeightApproximately 80 Lbs

Accuracy

IEEE Metering Accuracy 0.3 W, X, M, Y, Z, 1.2 ZZ

Input

Volts0-2400 thru 0-4800V
Frequency60Hz

Output

Standard120V

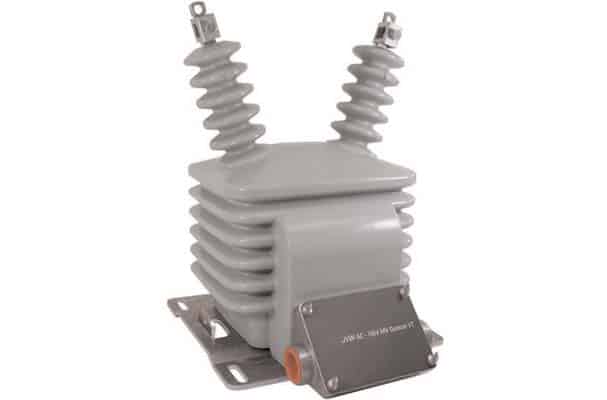

JVW-5C-medium-voltage-potential-transformer
